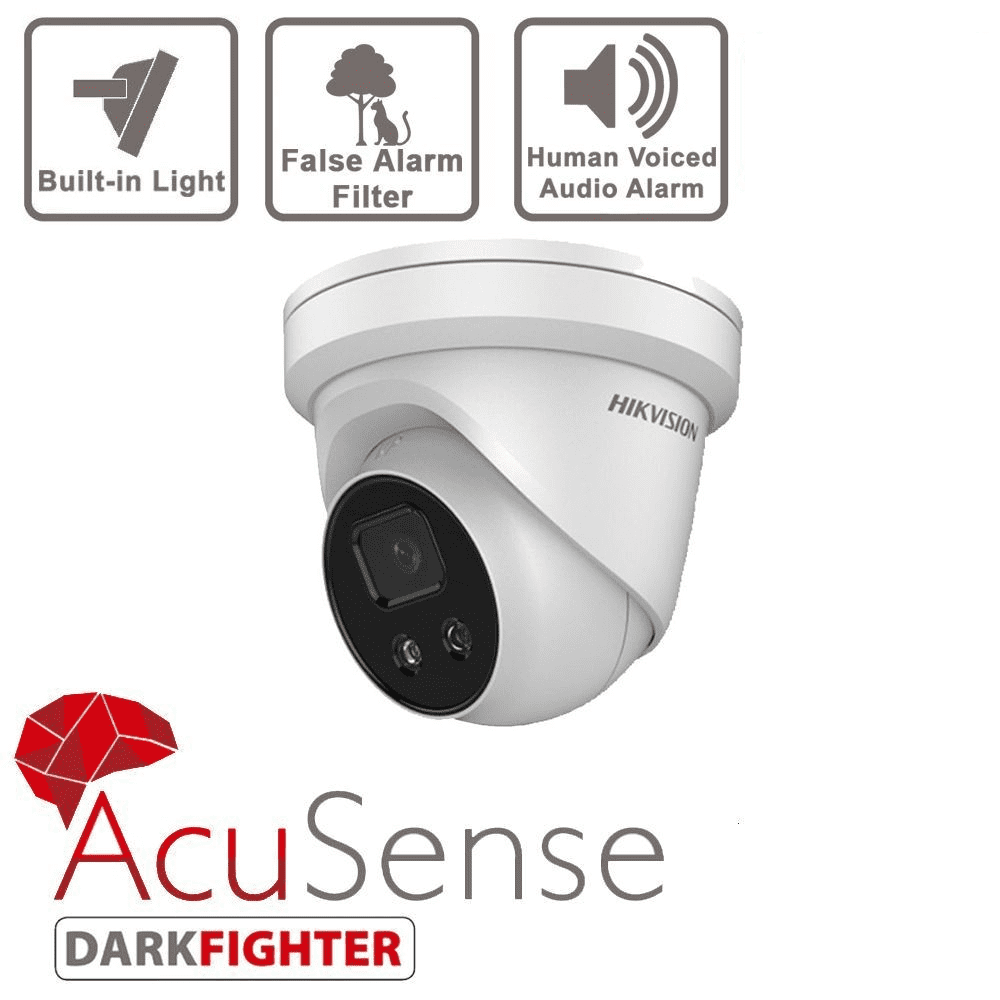

4MP DS-2CD2346G1-I/SL AcuSense Hikvision Indoor IR Fixed Turret Network Camera
4MP DS-2CD2346G1-I/SL AcuSense Hikvision Indoor IR Fixed Turret Network Camera
The Hikvision DS-2CD2346G1-I/SL is a 4MP indoor turret camera featuring a wide range of attributes.
Armed with false alarm filters; this camera has a deep learning algorithm that has the ability to distinguish people and vehicles from other moving targets in order to reduce false alarm notifications. AcuSense technology takes alarm accuracy and search efficiency to a whole new level.
Featuring a built-in speaker, audio alarm and a strobe light, this camera is able to deter intruders in a way no Hikvision camera had been able to before.
This camera is part of the DarkFighter series, with enhancing features such as back light compensation (BLC), 3D digital noise reduction (3D DNR), high light compensation (HLC) and 120dB wide dynamic range (WDR), giving a high quality detailed image in low-light environments.
The DS-2CD2346G1-I-SL has H.265+ compression giving a saving on storage and bandwidth usage compared to H.264 compression.
Features
- False alarm filter by target classification
- Max. 2688 × 1520 @30fps
- BLC/3D DNR/HLC/ROI
- 0.012 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Built-in speaker
- H.265+, H.264+
- Strobe Light & Audio Alarm
- 12 VDC & PoE (802.3af, class 3)
- 120dB WDR
- Powered by Darkfighter
- Built-in micro SD/SDHC/SDXC slot, up to 128G
Specification
- Camera
- Image Sensor 1/2.7" Progressive Scan CMOS
- Min. Illumination 0.012 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- Wide Dynamic Range 120dB
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Focus Fixed
- Lens Type 2.8/4/6/8 mm
- FOV 2.8 mm, horizontal field of view: 104°, vertical FOV: 58°, diagonal FOV: 124° ;4 mm, horizontal field of view: 83°, vertical FOV: 44°, diagonal FOV: 99° ;6 mm, horizontal field of view: 51°, vertical FOV: 28°, diagonal FOV: 58° ;8 mm, horizontal field of view: 39°, vertical FOV: 21°, diagonal FOV: 45°
- Aperture F1.6
- Lens Mount M12
- Aperture Type Fixed
- Illuminator
- IR Range Up to 30 m
- Wavelength 850nm
- Video
- Max. Resolution 2688 × 1520
- Main Stream 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) ;60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) ;60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) ;60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
- Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Main Profile/High Profile
- H.265 Type Main Profile
- H.264+ Main stream supports
- H.265+ Main stream supports
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) Support 4 fixed region for main stream and sub-stream separately
- Network
- Simultaneous Live View Up to 6 channels
- API ONVIF (PROFILE S, PROFILE G), ISAPI
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- User/Host Up to 32 users,3 levels: Administrator, Operator and User
- Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
- Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night Switch Day/Night/Auto/Schedule
- Target Cropping No
- DNR 3D DNR
- Image Enhancement BLC/3D DNR/HLC
- Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Interface
- On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset Yes
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Smart Event Line crossing detection, intrusion detection
- General
- Firmware Version V5.5.72
- General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Power Consumption and Current 12 VDC, 0.92 A, max. 11W,PoE (802.3af, 36V-57V), 0.34 A to 0.21 A,max. 12W
- Camera Dimension Camera: Φ 138.3 × 126.3 mm (Φ 5.4" × 5") ; With package: 170 × 170 × 150 mm (7" × 7" × 5.9")
- Camera Weight Camera: 430 g (0.9 lb.) ; With package: 733 g (1.6 lb.)
