4MP DS-2CD2345G0P-I 180° IP Ultra Wide Turret Camera 1.68mm Hikvision
4MP DS-2CD2345G0P-I 180° IP Ultra Wide Turret Camera 1.68mm Hikvision
Information

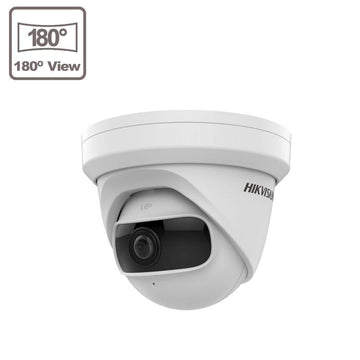

Hikvision DS-2CD2345G0P-I 4MP Ultra Wide IP Turret Camera
The Hikvision DS-2CD2345G0P-I is an internal IP turret style camera with an ultra wide 1.68mm lens that can offer a full 180° viewing angle and an Infrared range of up to 20m. The high quality 4MP resolution is complemented by 120 dB WDR technology which offers clear imaging against strong back light.
The DS-2CD2345G0P-I is not weatherproof and is for Indoor use only
The below video is from a higher resolution camera with a similar field of view
Key Features
- 4MP high resolution
- 1.68mm ultra wide angle fixed lens
- Internal use
- 3 axis mount
- Up to 10m IR distance
- H.265+ compression
- 6 analytics
- 120dB wide dynamic range
- Supports on board storage (up to 128GB)
- 12V DC & PoE (802.3af)
Specification
- Camera
- Image Sensor 1/2.7" Progressive Scan CMOS
-
Min. Illumination
Color: 0.028 Lux @ (F2.0, AGC ON)
B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- Wide Dynamic Range 120 dB
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens Type Fixed lens, 1.68 mm
- FOV 1.68 mm, horizontal FOV: 180° , vertical FOV: 101° , diagonal FOV: 180°
- Aperture F2.0
- Lens Mount M12
- Illuminator
- IR Range Up to 10 m
- Wavelength 850 nm
- Video
- Max. Resolution 2688 × 1520
-
Main Stream
50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
-
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
-
Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- Scalable Video Coding (SVC) H.264 and H.265 encoding support
- Region of Interest (ROI) 1 fixed region for main stream, sub-stream and third stream
- Network
- Simultaneous Live View Up to 6 channels
- API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
- Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- User/Host Up to 32 users, 3 levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Image
- Day/Night Switch Day/Night/Auto/Schedule
- Image Enhancement BLC, HLC, 3D DNR
- Image Settings Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
- Interface
- On-board Storage Built-in micro SD slot, up to 256 GB
- Hardware Reset Reset via reset button on camera body, web browser and client software
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
- General
- Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Storage Conditions -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
- Startup and Operating Conditions -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, type 1, class 3)
- Power Consumption and Current 12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8W
-
Camera Dimension
Camera: Φ 127.3 × 104.1 mm (Φ 5" × 4.1\")
With package: 150 × 150 × 141 mm (5.9 × 5.9\" × 5.6\")
-
Camera Weight
Camera: Approx. 520 g (1.1 lb.)
With package: Approx. 700 g (1.5 lb.)
- Approval
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
