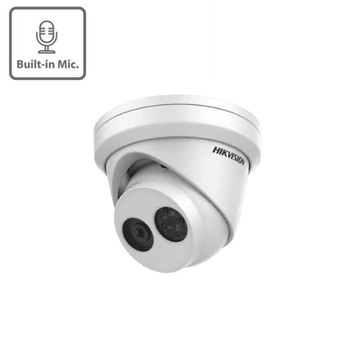

4MP DS-2CD2343G0-IU EasyIP 2.0 plus Microphone Fixed Turret
4MP DS-2CD2343G0-IU EasyIP 2.0 plus Microphone Fixed Turret
Description
The Hikvision DS-2CD2343G0-IU 4 megapixel turret camera is one of the latest releases for Autumn 2019. Featuring all of the great details as before, including IR LED's that reach a maximum distance of 30m and the flat faced design to help tackle IR reflection, spiders and raindrops this model now features a built in microphone.
This model is ideal for use for most outdoor applications, thanks to its IP66 rated, weatherproof housing. It also features the ability to be adjusted on three axis, which ensures that the area of interest can be easily covered regardless of if the camera is being wall mounted,on a junction box or with a wall mount.
Smart Features
- Smart Event - Line crossing detection, intrusion detection and face detection.
- Basic Event - Motion detection, video tampering alarm.
As with most of the new Hikvision cameras, the DS-2CD2343G0-IU features WDR (wide dynamic range) to create a balance between an image with dark and bright areas, improving the overall image. Of course, it features H.265+ video compression, which offers a huge bandwidth and storage saving compared to H.264. This camera can be powered by PoE or with a 12VDC power supply.
Features
-4mp
- Resolution: 2688 x 1520
- Built-in Microphone
- IR range up to 30m
- 3 Axis Adjustable
- 120dB WDR
- On board storage
- ONVIF compatible
Specification
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120dB
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- FocusFixed
- Lens Type2.8/4/6/8 mm
- FOV2.8 mm, horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°,4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°,6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°,8 mm, horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
- ApertureF1.6
- Lens MountM12
- Aperture TypeFixed
- Illuminator
- IR RangeUp to 30 m
- Wavelength850nm
- Video
- Max. Resolution2688 × 1520
- Main Stream
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Audio
- Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night SwitchDay/Night/Auto/Schedule
- Target CroppingNo
- DNR3D DNR
- Image EnhancementBLC/3D DNR/HLC
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventLine crossing detection, intrusion detection, face detection
- Face DetectionYes
- General
- Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
- Firmware Version5.6.3
- General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Power Consumption and Current12 VDC, 0.5 A, max. 6 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
- Camera DimensionCamera: Φ 127.3 × 95.9 mm (Φ 5.0" × 3.8"),Package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
- Camera WeightCamera: Approx. 610 g (1.3 lb.),With Package: Approx. 880 g (1.9 lb.)
- Approval
- Protection
Without -U: Ingress protection: IP67 (IEC 60529-2013)
With -U: Ingress protection: IP66 (IEC 60529-2013)
