4MP DS-2CD2143G2-IU Dome Network Camera With Built-In Microphone Hikvision
4MP DS-2CD2143G2-IU Dome Network Camera With Built-In Microphone Hikvision
4MP DS-2CD2143G2-IU Dome Network Camera With Built-In Microphone Hikvision

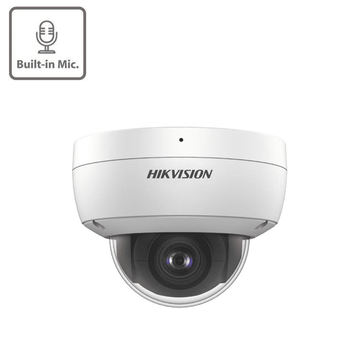

The DS-2CD2143G2-IU is a 4MP (2688 x 1520) dome camera from Hikvision's EasyIP 2.0+ range which is now available with a built-in microphone. It is fitted with IR LEDs that provide a maximum distance of 30m in darkness, IK10 vandal resistant housing and IP67 rated weatherproof housing making it a great choice for external applications where vandalism may be a concern.
The DS-2CD2143G2-IU has 3-axis adjust-ability and a variety of mounting options available helping the user to find the perfect solution to cover their specific areas of interest.
It also comes equipped with a range of image enhancing features such as 3D digital noise reduction technology (3D DNR) and back light compensation (BLC). On top of this is a smart feature set including motion detection, line crossing detection and intrusion detection.
This camera has a built in SD card slot which can be used to it's full ability thanks to H.265+ video compression which offers up to 70% savings on storage and bandwidth over H.264. The DS-2CD2143G2-IU can be powered via a 12VDC power supply or simply by PoE.
Remote access is possible through a browser or the Hik-Connect app.
Features
- 4MP resolution
- 2688 x 1520
- 30 fps
- Built-In Microphone
- Range of focal lengths available
- H.264, H.264+, H.265, H.265+
- 120dB wide dynamic range
- 3D digital noise reduction technology
- 30m IR range
- Micro SD card slot, up to 128GB
- IP67 rated weatherproof housing
- IK10 rated vandal proof housing
- 3-axis adjustment
Specification
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.6
- DORI
- DORI
2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)Yes
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board StorageBuilt-in microSD, up to 512 GB
- Built-in MicrophoneYes
- Reset KeyYes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
- Deep Learning Function
- Perimeter Protection
Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- DimensionØ121.4 × 92.2 mm (Ø4.8″ × 3.7″)
- Package Dimension150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
- WeightApprox. 570 g (1.3 lb.)
- With Package WeightApprox. 806 g (1.8 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
