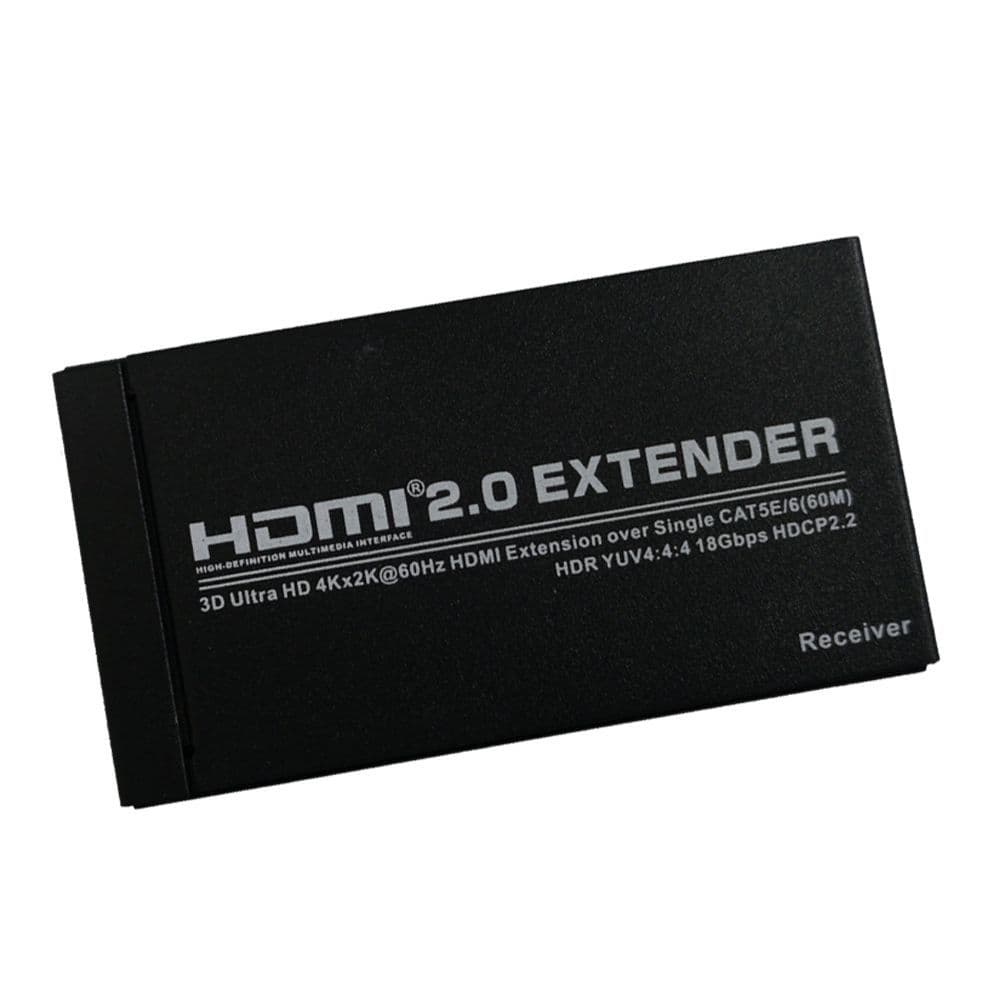

4K HDMI Extender upto 120m Metres over Cat5/Cat6

The Single Extender use single cat-5E or cat-6(recommended)cables up to 60 meters instead of HDMI cable to transmit high definition signal,for cutting down cost.Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

Features

Support HDMI 2.0 protocol

HDCP 1.2 protocol compliant

Support video input: 4k/2k @60hz

Signal transmission:single cat-5e or cat-6(recommended)cables up to 60 meters instead of HDMI cables are connected between TX and RX

Support video output: 4k/2k @60hz

Audio format support:DTS-HD/true HD/LPCM7.1/DTS/Dolby-AC3/DSD

LED indication: when power is supplied or device is working, LED light

No loss of quality

Installs in minutes

SPECIFICATIONS:

Length of CAT-6/5/e cable between RX and TX...............................Up to 120 meters

HDMI Input......................... 4k/2k @60hz

Support audio format input...........DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output ..................... 4k/2k @60hz

Support audio format output............................. LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth.....................................................................................600MHz

Max baud rate......................................................................................18Gbps

Input Video signal................................................................... .0.5~1.5Voltts p-p

Output DDC signal................................................................... 5Volts p-p(TT1L)

Input/Output HDMI 1.3 cable distance.........10m AWG26 HDMI 1.3 standard cable

Max working current................................................................................100mA

Power adapter format.........Input:AC(50HZ,60HZ)100V-240V;Output:DC5V

Operating Temperature range.......................................................(-15 to +55)

Operating Humidity range................................5 to 90% RH(No.Condensation)

Dimension(L×W×H)....................................................................82×43×21(mm)

Weight.........................................................................................................220g

Operating and Connecting:

1. Connect the HDMI input source to the sender

2. Connect one HDMI 2.0 cable up to 20 meters between sender receiver

3. Connect the output of Receive to display

4. Connect 5V power supply to the HDMI CAT 60 RX&TX Extender
