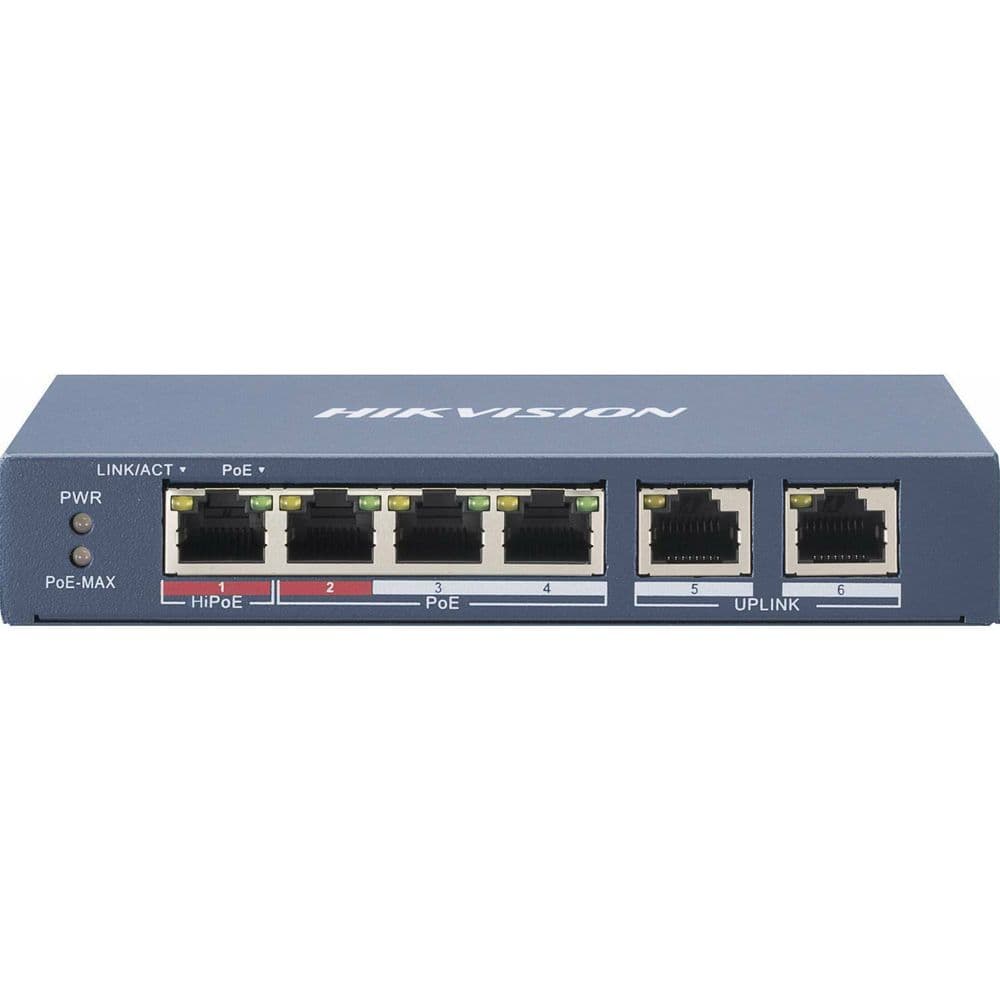

4-port Hikvision 100Mbps unmanaged PoE switch DS-3E0106HP-E 2x Uplink
Hikvision 4-ports 100Mbps x2 Uplinks unmanaged PoE+ switch DS-3E0106HP-E
DS-3E0106HP-E switches are layer 2 100 Mbps long-range PoE switches, providing 1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports. The switches provide advanced Hi-PoE/PoE technology and support extend mode with long-range access up to 250 m.
The prior and stable transmission of the important surveillance area videos can also be guaranteed when connected to the high priority ports. Meanwhile, the 2 × 10/100 Mbps RJ45 uplink ports guarantee applications of multiple network solutions.
Features
- Up to 250m transmission achievable at reduced mbps rate
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W port power
- IEEE 802.3at/af standard for PoE ports
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard
- 1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports
- Provides up to 30 watts per PoE port
- PoE power budget 60W
- 6 kV surge protection for PoE ports
- Plug-and-play installation
- 1.2 Gbps switching fabric
- 768 Kbits RAM Data Buffer
- 1K MAC address entries
Specification
- General
- ShellMetal material, fan-free design
- Net Weight0.24 kg (0.53 lb)
- Gross Weight0.77 kg (1.70 lb)
- Dimensions (W × H × D)145 mm × 25.6 mm × 68.45 mm (5.7'' × 1.0'' × 2.7'')
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 1.35 A
- Max. Power Consumption65 W
- Power Consumption in Idle5 W
- Installation ModeDesk-Mounted,Wall-Mounted
- Surge Protection6 KV
- Network Parameters
- Ports4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
- MAC Address Table2 K
- Switching Capacity1.20 Gbps
- Packet Forwarding Rate0.89 Mpps
- Internal Cache768 Kbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Port
Hi-PoE: Port 1
PoE: Ports 2 to 4
- Max. Port Power
Port 1: 60 W
Ports 2 to 4: 30 W
- PoE Power Budget60 W
- Dialing Function
- Long Range
Ports 1 to 4: up to 300 m
Long range performance may vary depend on camera model or cable condition.
- Software Function
- VIP PortPorts 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
