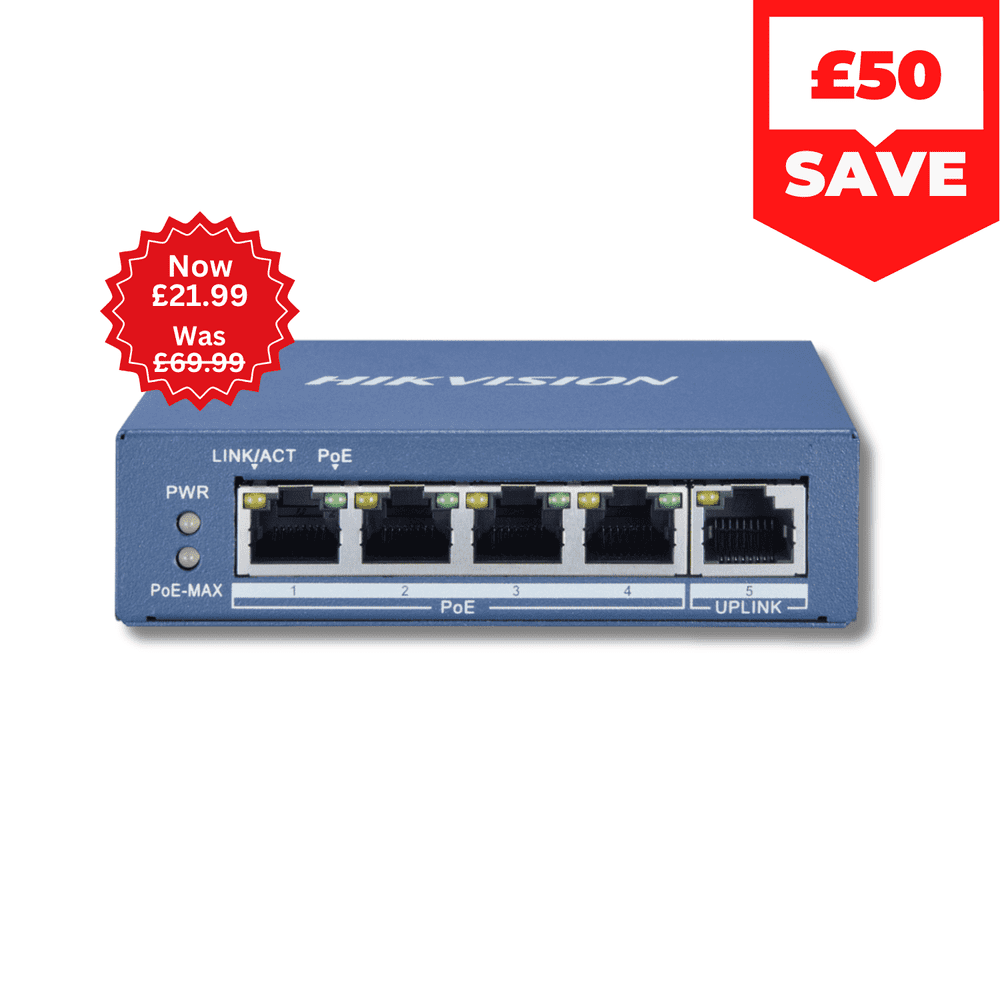

4-Port DS-3E0505P-E Gigabit 1000Mbps Unmanaged PoE Switch (Offer)
Hikvision - DS-3E0505P-E 4 Port Gigabit Unmanaged POE Switch
Expand your network capacity using the DS-3E0505P-E 4-Port Gigabit PoE-Compliant Unmanaged Network Switch from Hikvision. This plug-and-play unmanaged switch doesn't require any additional setup or configuration. It features four PoE-compliant Gigabit Ethernet ports to connect surveillance cameras and other powered network devices in addition to a Gigabit RJ45 uplink port for expansion.
The switch has a 10 Gb/s non-blocking switching capacity and a forwarding capacity of 7.44 Mbps. It also delivers up to 30W per port and up to 6kV surge protection with a total power budget of 60W. With its metal construction and fanless design, the DS-3E0505P-E operates silently on your desktop.
Features
- Layer 2 network switch designed for video data transmission
- 4 x 10/100/1000 Mbps ethernet ports and 1 x 10/100/1000 Mbps uplink ethernet port
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
- IEEE 802.3 af & at high PoE power supply
- Store-and-forward switching
- Safe and reliable using 6 KV high surge protection
- Plug and play ensures simplicity and convenience
Specification
- General
- ShellMetal material, fan-free design
- Net Weight0.26 kg (0.57 lb)
- Gross Weight0.84 kg (1.85 lb)
- Dimensions (W × H × D)105.0 mm × 27.6 mm × 83.1 mm (4.1'' × 1.1'' × 3.3'')
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 1.35 A
- Max. Power Consumption65 W
- Power Consumption in Idle5 W
- Installation ModeDesk-Mounted,Wall-Mounted;
- Surge Protection6 KV
- Network Parameters
- Ports4 × Gigabit PoE port,1 × Gigabit RJ45 port
- MAC Address Table2 K
- Switching Capacity10 Gbps
- Packet Forwarding Rate7.44 Mpps
- Internal Cache1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(+), 3/6(-)
- PoE PortPoE: Ports 1 to 4
- Max. Port Power30 W
- PoE Power Budget60 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
