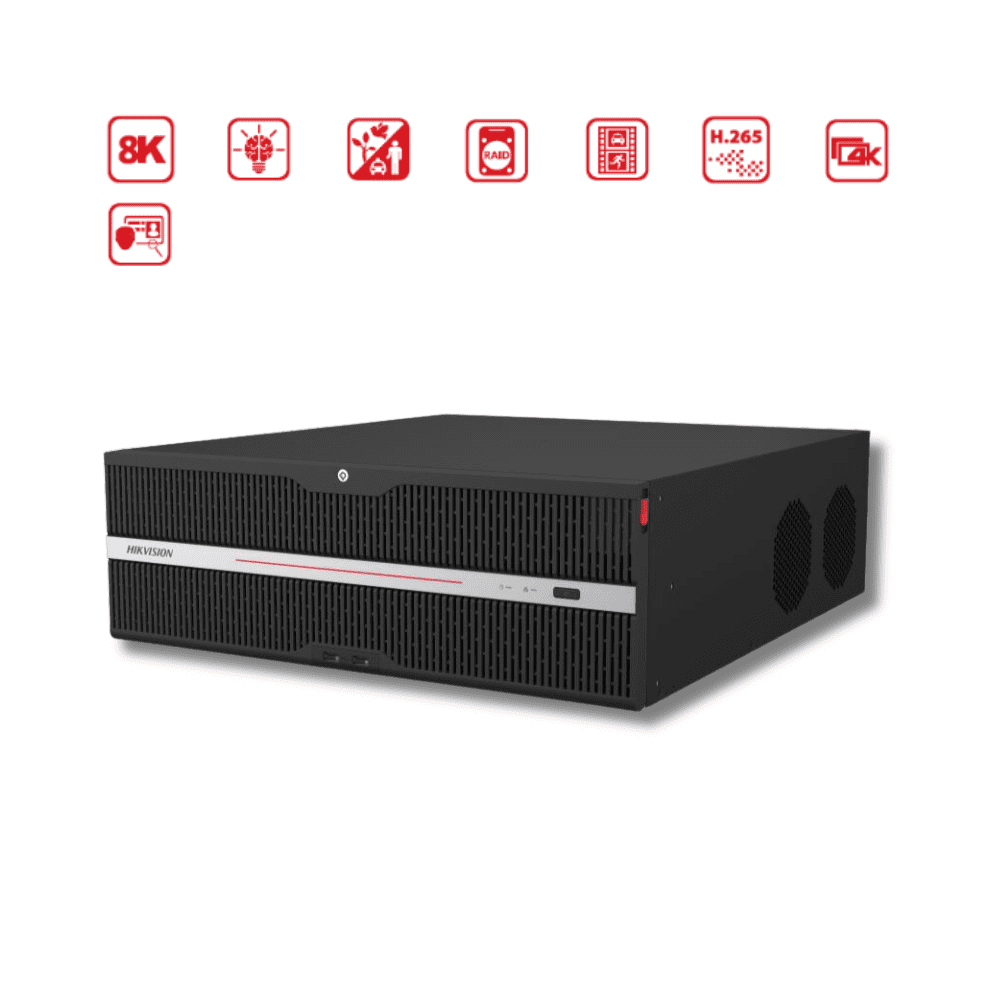

3U 8K Hikvision iDS-9664NXI-M16/X 64-ChannelDeepinMind NVR
3U 8K Hikvision iDS-9664NXI-M16/X 64-ChannelDeepinMind NVR
Key Features
- Professional and Reliability
- HD Video Output
- Smart & POS Function
Discover the power of Hikvision's iDS-9664NXI-M16/X(STD), a 64-Channel 3U 8K DeepinMind NVR designed for unmatched reliability and professional-grade surveillance. This advanced NVR features high-definition video output and innovative smooth streaming technology, ensuring crystal-clear footage. Equipped with two self-adaptive 10/100/1000 Mbps Ethernet interfaces, it supports seamless web access without the need for plugins. Its smart functionality and POS integration enhance operational efficiency. Perfect for securing complex environments, upgrade your security system with this top-tier NVR. Don't miss out, secure your premises now!
Main Features
- Professional and Reliability
- HD Video Output
- Smart & POS Function
- 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
- Smooth streaming technology
- Support web access without plug-in
Specification
- Intelligent Analytics
- AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
- AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
- Engine2, each engine can run an intelligent algorithm, engine mode is adjustable
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Face Picture Comparison (Captured from Camera)
48-ch (24-ch for each engine);
Comparison speed: 48 pictures per second
- Facial Detection and Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP
- AcuSearch
- By Camera
All channels ,up to 691,200 targets/day
The camera should enable AcuSearch function
- By NVRup to 8-ch,up to 691,200 targets/day
- Perimeter Protection
- By NVR
perimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP
perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
- By Cameraperimeter protection powered by Large Model with AcuSense cameras: All channels
- Video Structuralization
- Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
- Face Picture LibraryUp to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Face Picture Comparison
16-ch;
Comparison speed: 32 pictures per second
- ANPR
- By CameraAll channels
- Plate AttributesPlate number, license plate color, license plate type
- Vehicle AttributesVehicle brand, vehicle color, vehicle type
- Video and Audio
- IP Video Input
64-ch
Up to 32 MP resolution
- Incoming Bandwidth400 Mbps
- Outgoing Bandwidth400 Mbps
- HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
- HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.
- Incoming Bandwidth (RAID Mode)400 Mbps
- Outgoing Bandwidth (RAID mode)400 Mbps
- VGA 1 Output1920 × 1080/60Hz
- VGA 2 Output1920 × 1080/60Hz
- Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
- Synchronous Playback16-ch
- Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Camera Access ProtocolONVIF(Version 2.5), RTSP
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
- Auxiliary Interface
- Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
- DC 12V12 VDC, 1 A power output
- SATA16 SATA interfaces; 3.5-inch HDD
- eSATA1 eSATA interface
- CapacityUp to 16 TB capacity for each HDD
- Serial Interface1 RS-232, 1 RS-485 (full-duplex)
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
- Alarm In/Out16/9
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 50 W (without HDD)
- Working Temperature-10 to 55°C (14 to 131° F)
- Working Humidity10 to 90%
- Dimension (W × D × H)442× 494× 150 mm (17.4"× 19.5" × 5.9")
- Weight≤ 13 kg (without HDD, 28.7 lb.)
- Certification
- Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
