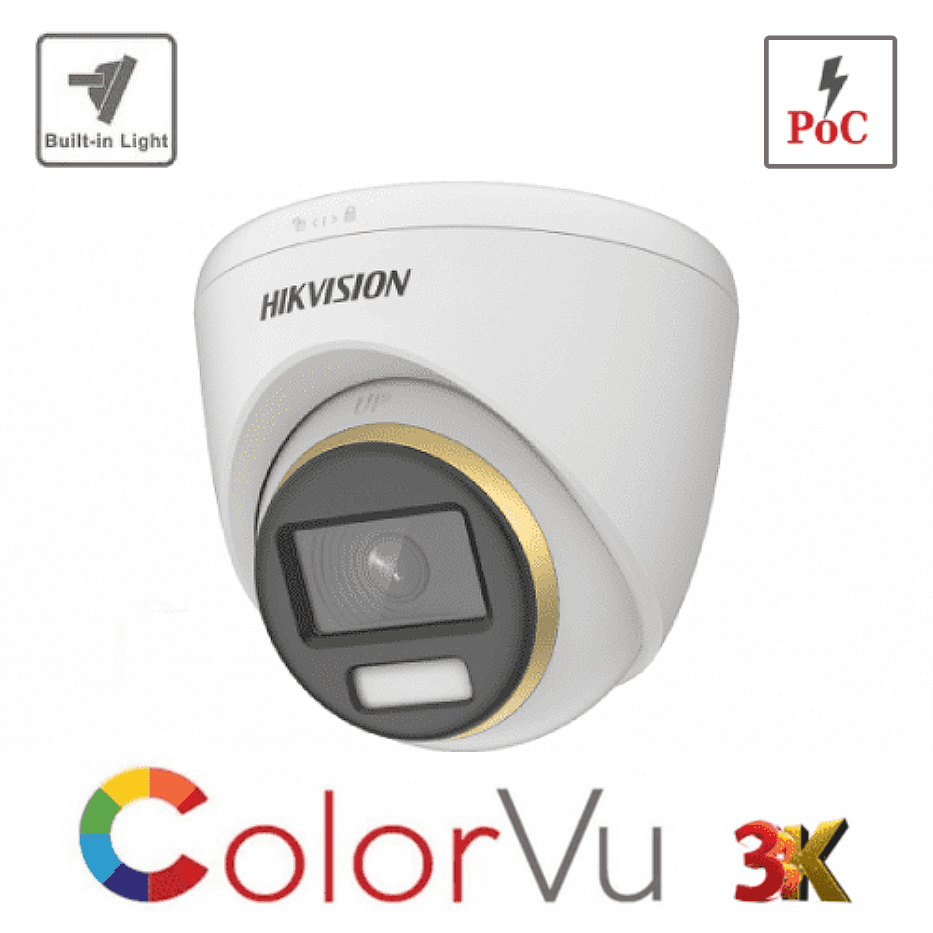

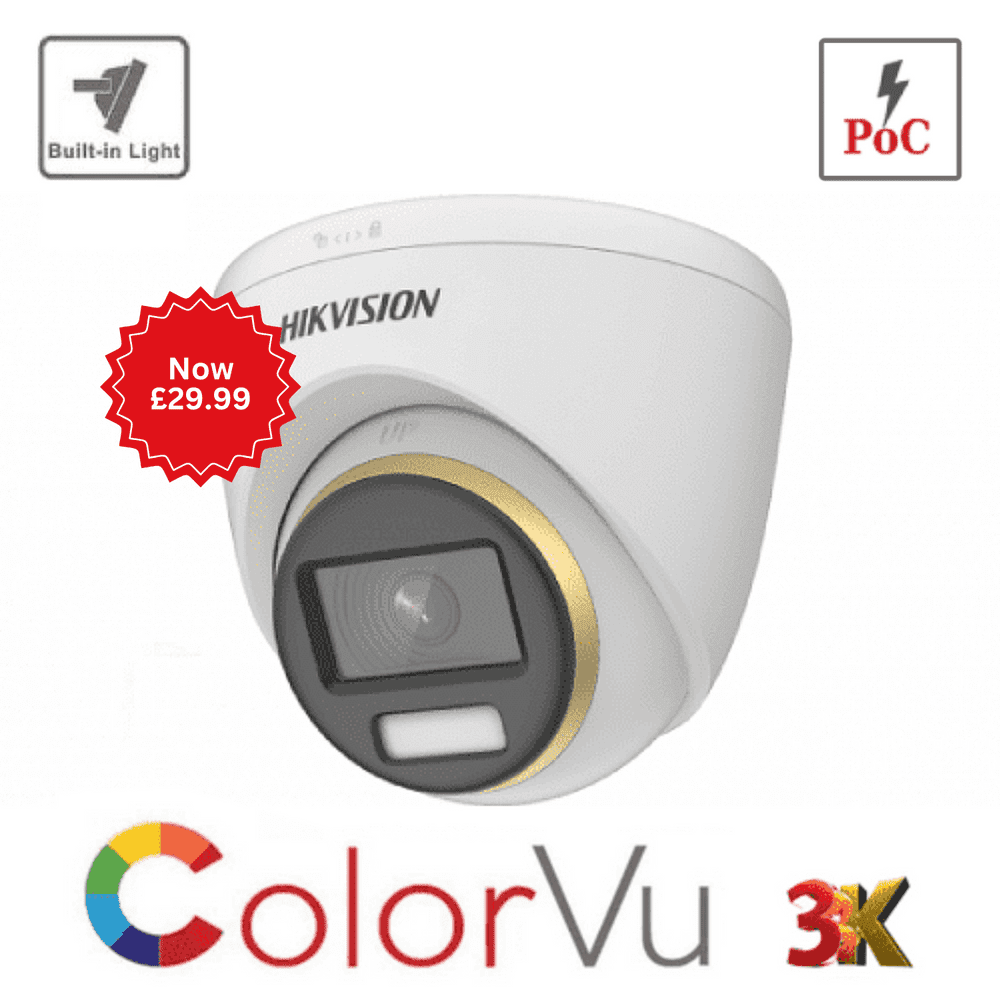

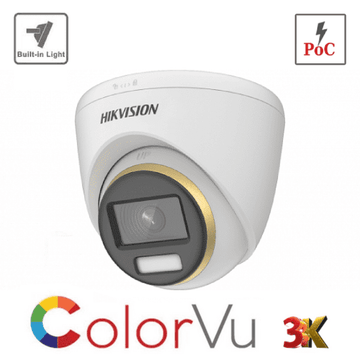

3K Hikvision DS-2CE72KF3T-E(2.8mm) - UK 3K ColorVu PoC Fixed Turret Camera (Offer)
3K Hikvision DS-2CE72KF3T-E(2.8mm) - UK 3K ColorVu PoC Fixed Turret Camera (Offer)
3K Hikvision DS-2CE72KF3T-E(2.8mm) - UK 3K ColorVu PoC Fixed Turret Camera (Offer)
Available NOW - Limited Stock
Features
- High quality imaging with 3K, 2960 × 1665 resolution
- 2.8mm fixed lens
- 24-hour colour image
- Colour day/night
- OSD menu
- Smart Light
- Up to 40m white light distance
- IP67 weatherproof
- 130dB wide dynamic range
- PoC.at
- 12V DC
POC - MAKING INSTALLATIONS A LOT SIMPLER!
Power over Coaxial (PoC) basically means that power for the camera is supplied by the DVR via coaxial video cable (RG59 or similar), this removes the requirement for separate cables and power supplies which would otherwise be needed to power your cameras. For installers this means a much more time and cost efficient
installation.
PoC can be used on cable runs up to 200 metres and is available in 4,8 and 16 channel DVRs (models ending /P), a full complement of TVI PoC cameras are also available (models ending E) which together offer a cost effective and time saving solution to your TVI installations.
PLEASE NOTE: All PoC cameras can also work on non PoC recorders
1. All PoC capable TVI cameras can be powered locally via a separate power supply allowing them to be used on a none PoC TVI DVR
2. All none PoC TVI cameras can work on a PoC capable TVI DVR as the camera is powered via a separate power supply and PoC will
only transmit when requested to by a compatible camera
3. PoC transmission has generally been used through RG59 coaxial or similar cable, however with the release of our HAY-HDVB01POC-PT it can now also be used through CAT5 offering even greater flexibility of install.
Specification
- Camera
- Image Sensor1/1.8" 3K CMOS
- Signal SystemPAL/NTSC
- Max. Resolution2960 (H) × 1665 (V)
- Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Light AlarmSolid Light Alarm (White Light)
- Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Lens
- Lens Type2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 133°
3.6 mm, horizontal FOV: 95°, vertical FOV: 50°, diagonal FOV: 115°
- Lens MountM16
- Image
- Frame Rate3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
- Wide Dynamic Range (WDR)≥130 dB
- White LightAuto/Off
- Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
- AGCYes
- Day/Night ModeColor
- White BalanceAuto/Outdoor/Global/Manual
- Image EnhancementHLS;Global;HLC;BLC;WDR
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR/2D DNR
- Image SettingsSmart Light;Mirror;Contrast;Brightness;Anti-Banding
- Interface
- Video Output1 HD analog output
- Event
- Motion Detection4 programmable motion areas
- General
- LanguageEnglish
- Operating Condition-40°C to 50°C (-40°F to 122°F), Humidity: 90% or less (non-condensing)
- Power Supply
12 VDC ± 25%/PoC.at
*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
- ConsumptionMax. 4 W
- MaterialMain body: Metal, Enclosure: Plastic
- White Light RangeUp to 40 m
- CommunicationHIKVISION-C
- DimensionΦ 109.98 mm × 98.27 mm (Φ 4.33" × 3.87")
- WeightApprox. 380 g (0.84 lb.)
- Approval
- ProtectionIP67
