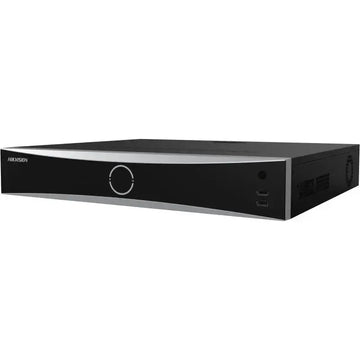

32 MP iDS-7732NXI-M4/X 32-ch 1.5U 8K DeepinMind NVR

• Intelligent Analytics
• AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
• AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
• Engine2, each engine can run an intelligent algorithm, engine mode is adjustable

• Facial Recognition
• Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
• Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
• Face Picture Comparison (Captured from Camera)

  32-ch (24-ch for each engine);

  Comparison speed: 48 pictures per second

• Facial Detection and Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP

• AcuSearch
• By Camera

  All channels ,up to 691,200 targets/day

  The camera should enable AcuSearch function

• By NVRup to 8-ch,up to 691,200 targets/day

• Perimeter Protection
• By NVR

  perimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP

  perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP

• By Cameraperimeter protection powered by Large Model with AcuSense cameras: All channels

• Video Structuralization
• Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
• Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
• Face Picture Comparison

  16-ch;

  Comparison speed: 32 pictures per second

• ANPR
• By CameraAll channels
• Plate AttributesPlate number, license plate color, license plate type
• Vehicle AttributesVehicle brand, vehicle color, vehicle type

• Video and Audio
• IP Video Input

  32-ch

  Up to 32 MP resolution

• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth400 Mbps
• HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
• HDMI 2 Output

  4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

  *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

• VGA Output1920 × 1080/60Hz
• Video Output ModeHDMI1/VGA1 simultaneous output, HDMI1/HDMI2 independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Decoding
• Decoding FormatH.265/H.265+/H.264/H.264+
• Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
• Synchronous Playback16-ch
• Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

• Network
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
• APIONVIF (profile S/G); SDK; ISAPI
• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Camera Access ProtocolONVIF(Version 2.5), RTSP

• Auxiliary Interface
• SATA4 SATA interfaces; 3.5-inch HDD
• eSATA1 eSATA interface
• CapacityUp to 16 TB capacity for each HDD
• Serial Interface1 RS-232, 1 RS-485 (full-duplex)
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/4

• General
• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 50 W (without HDD)
• Working Temperature-10 to 55°C (14 to 131° F)
• Working Humidity10 to 90%
• Dimension (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
• Weight≤ 5 kg (without HDD, 11 lb.)

• Certification
• Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CE

  EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

  9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
