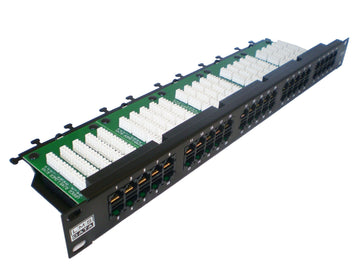

2U 19" 50 Port CAT3/TELEPHONE - Patch Panel (Dual Use) - 4 Pin (UTP) PPAN-50-T-4P
2U 19" 50 Port CAT3/TELEPHONE - Patch Panel (Dual Use) - 4 Pin (UTP) PPAN-50-T-4P
The Cost-Effective Telco Patching Panel
Offering quality construction and performance in the world of Telecommunications Patching for your Telco and low bandwidth networking applications.
The PPAN series are a fully featured Telco Patch Panel with FCC approved outlets with full technical adherence to ISO/IEC-11801 specifications. Integral gold-plated connections and over a 750 insertion life on the Ports, the PPAN series is your ideal choice
Whats more, the Krone® type IDC connectors on the horizontally mounted IDC have an excellent re-insertion life of over 200 cycles and can accommodate 22-26 AWG cables with ease. Fully connector numeric IDs are screen printed also for quick punch down.
High-density 50-Way 1U high design to maximise your Enclosure space.
The Cost-Effective Telco Patching Panel
Offering quality construction and performance in the world of Telecommunications Patching for your Telco and low bandwidth networking applications.
The PPAN series are a fully featured Telco Patch Panel with FCC approved outlets with full technical adherence to ISO/IEC-11801 specifications. Integral gold-plated connections and over a 750 insertion life on the Ports, the PPAN series is your ideal choice
Whats more, the Krone® type IDC connectors on the horizontally mounted IDC have an excellent re-insertion life of over 200 cycles and can accommodate 22-26 AWG cables with ease. Fully connector numeric IDs are screen printed also for quick punch down.
High-density 50-Way 1U high design to maximise your Enclosure space.
- 50-Way 1U High, 19 Wide Form Factor
- Ideal for Telco and CAT3 type low bandwidth applications
- Certified to ISO/IEC-11801 specifications, 4 pin
- Krone® style rear horizontal IDC with 200+ insertion cycle
- Gold plated sockets for improved data flow and reduced resistance
- 22-26AWG Data Cable compatible
- Insulation resistance approx. 1000Mohms
- Contact resistance approx. 7Mohms
- Integral rear cable management anchor points
- Quality metal casing with front Port Numbering
SKU/MPN: 8400800032225
EAN: PPAN-50-T-4P
