2MP HiLook PTZ-T4215I-D 2MP TVI PTZ 15X Zoom
2MP HiLook PTZ-T4215I-D 2MP TVI PTZ 15X Zoom

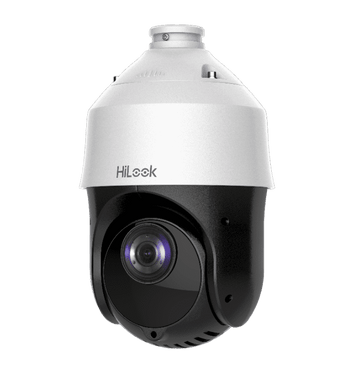

The HiLook PTZ-T4215I-D by Hikvision is a 2MP 5 mm to 75 mm speed dome TVI camera with pan and tilt functions and a 15 x optical zoom. The embedded CMOS chip makes WDR and real-time 1920 × 1080 resolution possible up to 30fps. The black anti-reflective glass increases the luminousness which helps IR distance reach up to 100 m.
The PTZ-T4215I-D also features 3D intelligent positioning with allows the user to track and zoom a person or vehicle with a simple click and drag of the mouse.
DarkFighter Low Light Technology
Powered by Darkfighter technology allows the camera to stay in colour mode for longer in low light conditions. When small details matter, such as the colour of an intruders clothes, Darkfighter allows for more detailed surveillance for longer periods.
Features:
- Four-inch 2 MP camera with pan, tilt and zoom (15x) ability
- 2MP 1080P full HD resolution up to 30fps
- 15X optical zoom
- 5 mm to 75 mm lens
- Clear imaging against strong back light due to 120 dB true WDR technology
- powered by Darkfighter technology
- Excellent night-time performance with up to 100 m enhanced IR
- 1920 × 1080 resolution
- 1/2.8" HD progressive scan CMOS
- Up to 100 m IR distance
- 3D intelligent positioning
- Water and dust resistant (IP66)
- Switchable TVI/AHD/CVI/CVBS video outputs
Product Specifications
| Camera | |
| Model | PTZ-T4215I-D |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Frame Rate | 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080) |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
| White Balance | Auto/Hauto/Manual/ATW/Indoor/Outdoor |
| AGC | Auto/Manual |
| DNR | 3D DNR |
| WDR | 120 dB |
| Shutter Time | PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
| Day & Night | IR cut filter |
| Digital Zoom | 16× |
| Privacy Mask | 8 programmable privacy masks |
| BLC (Backlight Compensation) | Yes |
| HLC (highlight Compensation) | Yes |
| EIS (Electric Image Stabilisation) | Yes |
| Regional Focus | Yes |
| Lens | |
| Focus Mode | Auto/Semi-auto/Manual |
| Focal Length | 5 mm to 75 mm, 15× Optical |
| Aperture Range | F 1.6 to F 3.5 |
| Horizontal Field of View | 53.8° to 4.0° (wide to tele) |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | Approx. 2.4 s (optical, wide to tele) |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s |
| Tilt Range | -15° to 90° (auto flip) |
| Tilt Speed | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Presets | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Yes |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Position Display | ON/OFF |
| Preset Freezing | Yes |
| Scheduled Task | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
| Infrared | |
| IR Distance | Up to 100 m |
| IR Intensity | Automatically adjusted depending on the zoom ratio |
| Input/Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| Menu Language | English |
| Power | 12 VDC Max.20 W (IR: 7 W) |
| Working Temperature | -30° C to 65° C (-22° F to 149° F) |
| Working Humidity | 90% or less |
| Protection Level | IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimension | Ø 165.9 mm × 290 mm (Ø 6.5" × 11.4") |
| Weight (approx.) | 2 kg (4.41 Ib.) |
