2MP DS-KV8413-WME1/SURFACE Hikvision Video Intercom w/ Mifare - 4 Button

2MP DS-KV8413-WME1/SURFACE Hikvision Video Intercom w/ Mifare - 4 Button

Regular price £152.47
Sale price £152.47 Regular price
Unit price
Information
Information

Description

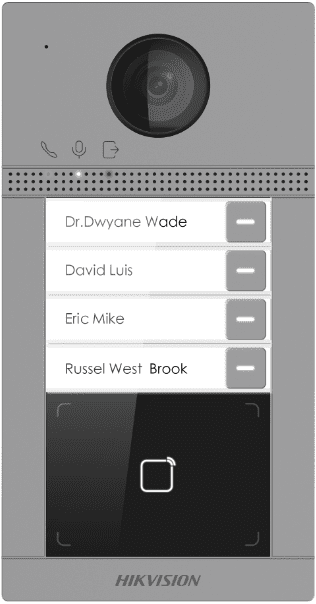

DS-KV8413-WME1 is a 4-subscriber gate/door station, dedicated for 2nd generation Hikvision IP video intercom systems. Attractive design and great functionality make this station ideally suited to the construction of single-family houses. Built-in color camera with a resolution of 2 MP with wide viewing angle (129° (H)/75° (V)) and an IR illuminator with the range of 3 m, ensure proper area observation round the clock. Built-in Mifare (13.56 MHz) transponder reader allows for door opening with cards or key rings. The panel has 4 alarm inputs and 2 relay outputs for opening a gate or entrance door. The built-in speaker and microphone with echo and noise cancellation function allow for good quality voice connections. The station is equipped with an Ethernet port enabling power supply and connection to the system and a WiFi (2.4 GHz) module for wireless communication. The configuration of the IP video door system can be performed with the use of the iVMS 4200 client software or a web browser using an embedded webserver. Remote monitoring and operation are controlled by the Hik-Connect application without the need for port forwarding (monitor required). The station can be supplied with 12 VDC or PoE (802.3af).

Key features

  • Support Wifi, convenient setting up and no wiring required
  • Support web configuration
  • Aluminium alloy, Nice industry design, IP65, IK08, 3 indicator integrated
  • Internal Mifare card reader, 4-ch Indoor station access control
  • Noise suppression and echo cancellation
  • 2MP HD Camera with IR supplement
  • Standard PoE/12 VDC

Specification

  • Display parameters
  • Size/
  • Operation method/
  • Type/
  • Video parameters
  • Supplement light

    IR supplement

  • Lens1
  • FOVHorizontal: 129° Vertical: 75°
  • Pixel

    Main stream : 1920 × 1080

    Sub stream : 720 × 480

  • Audio parameters
  • Audio qualityNoise suppression and echo cancellation
  • Network parameters
  • Communication protocol

    TCP/IP, RSTP

  • Wired network10/100 Mbps self-adaptive Ethernet
  • Wi-Fi/
  • Bluetooth/
  • Device interfaces
  • Network interface1
  • Exit button2
  • Lock control2
  • Door contact input2
  • Power interface1
  • General
  • Button4
  • Installation

    Surface Mounting

  • Indicator3
  • Weight385g
  • Protective levelIP65, IK08
  • Power supply method

    IEEE802.3af, standard PoE

    12 VDC

  • Working temperature-40° C to +55° C(-40° F to 131° F)
  • Working humidity

    10% to 95%

  • Dimensions174 mm × 91 mm × 29 mm
  • Battery/
  • Application environmentOutdoor
  • Power consumption

    < 10 W

  • LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Slovak, Portuguese
