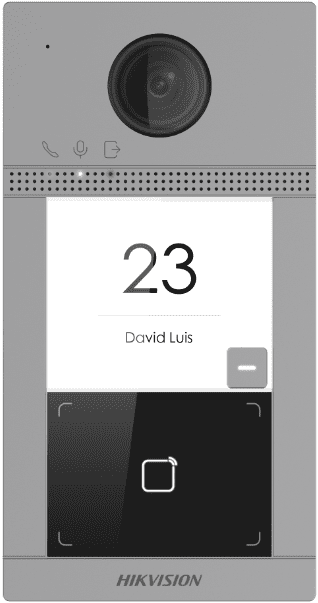

DS-KV8113-WME1 is a 1-subscriber gate/door station, dedicated for 2nd generation Hikvision IP video intercom systems. Attractive design and great functionality make this station ideally suited to the construction of single-family houses.
Built-in color camera with a resolution of 2 MP with wide viewing angle (129° (H)/75° (V)) and an IR illuminator with the range of 3 m, ensure proper area observation round the clock.
Along with Built-in Mifare (13.56 MHz) transponder reader that allows for door opening with cards or key ringsm the panel has 4 alarm inputs and 2 relay outputs for opening a gate or entrance door. The built-in speaker and microphone with echo and noise cancellation function allow for good quality voice connections.
The station is equipped with an Ethernet port enabling power supply and connection to the system and a WiFi (2.4 GHz) module for wireless communication. The configuration of the IP video door system can be performed with the use of the iVMS 4200 client software or a web browser using an embedded webserver.
Remote monitoring and operation are controlled by the Hik-Connect application without the need for port forwarding (monitor required). The station can be supplied with 12 VDC or PoE (802.3af).
Features
- Support Wifi, convenient setting up and no wiring required
- Support web configuration
- Aluminum alloy, Nice industry design, IP65, IK08, 3 indicator integrated;
- Internal Mifare card reader, 2-ch Indoor station access control;
- Noise suppression and echo cancellation
- 2MP HD Camera with IR supplement
- Standard PoE/ 12 VDC
Specification
- System parameters
- Operating systemEmbedded Linux operation system
- ROM32 M
- RAM256 M
- CPUEmbedded MCU Processor
- Display parameters
- Screen size/
- Operation method/
- Type/
- Resolution/
- Video parameters
- Lens1
- Resolution
Main stream : 1920 × 1080
Sub stream : 720 × 480
- FOVHorizontal: 129° Vertical: 75°
- WDRSupport
- Supplement lightIR supplement
- Video compression standardH.264
- Audio parameters
- Audio compression standardG.711 U
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker (More than 85 dB within 20 cm)
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity/
- Face capacity/
- Card capacity/
- Linked indoor station capacity1
- Network parameters
- Communication protocolTCP/IP, RTSP
- Wired network10/100 Mbps self-adaptive Ethernet
- Wi-Fi standard/
- Bluetooth version/
- 3G/4G standard/
- Device interfaces
- Alarm input4
- Network interface1
- TAMPER1
- Exit button2
- RS-4851
- USB0
- Wiegand0
- TF card0
- Alarm output0
- Lock control2
- Door contact input2
- Power interface1
- Performances
- Multi-factor authentication2000
- General
- Button1
- InstallationSurface mounting
- Indicator3
- Weight385 g
- Protective levelIP65, IK08
- Working temperature-40° C to +55° C(-40° F to 131° F)
- Working humidity10% to 95%
- Dimensions174 mm × 91 mm × 29 mm
- Battery/
- Application environmentOutdoor
- Power consumption＜ 10 W
- LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
