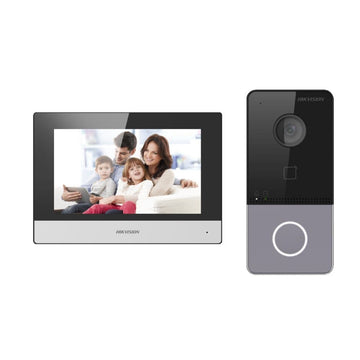

2MP DS-KIS603-P (C) Video Intercom Kit HD IP POE Bundle Complete Video two Way Audio Kit
2MP DS-KIS603-P (C) Video Intercom Kit HD IP POE Bundle Complete Video two Way Audio Kit
2MP DS-KIS603-P (C) Video Intercom Kit HD IP POE Bundle Complete Video two Way Audio Kit
Terms and conditions
- You must be competent in installing video intercom systems.
Villa Door Station
Standard PoE
2 MP HD camera
Noise suppression and echo cancellation
Low illumination
Access control functions
Tamper-proof
Configuration remotely via Web
Network Indoor Station
7-inch colorful touch screen with resolution 1024 × 600
Standard PoE
Stores messages and captured pictures in the TF card
Remote unlocking via the client software or the mobile client
Views live videos of door stations and linked cameras
Supports wireless network
Click Here for Full Specification
What's included in the KIT:
DS-KV6113-WPE1 x1;
DS-KH6320-WTE1 x1;
PSU x2;
Specification
-
Door station/System parameters
-
Door station/Video parameters
-
Door station/Audio parameters
-
Door station/Network parameters
-
Door station/Device interfaces
-
Door station/General
-
Indoor station/System parameters
-
Indoor station/Display parameters
-
Indoor station/Audio parameters
-
Indoor station/Network parameters
-
Indoor station/Device interfaces
-
Indoor station/General
- Door station/System parameters
- Operation systemEmbedded Linux operation system
- Flash32 MB
- RAM256MB
- Door station/Video parameters
- Camera2MP HD camera
- Night visionLow illumination IR supplement mode:3 m
- Backlight compensationSupport
- Digital noise reductionSupport
- WDRTrue WDR
- Field of viewHorizontal: 131° Vertical: 78°
- Video Compression StandardH.264
- StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
- Motion detectionSupport
- Flash-avoid frequency50 Hz, 60 Hz
- Door station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711 U
- Audio compression Rate64 Kbps
- Audio intercomTwo-way audio communication
- Door station/Network parameters
- Network protocolTCP/IP, RSTP
- Wired network10/100 Mbps Ethernet
- Door station/Device interfaces
- RS-485 1
- Alarm input4
- Debugging port1
- Grounding1
- TAMPER switch1
- Door station/General
- Power consumption＜ 10 W
- Working temperature-40° C to 53° C(-40° F to 127.4° F)
- Working humidity10% to 95%
- Dimension138 mm × 65 mm × 27 mm
- InstallationSurface mounting
- Protection level IP65
- Indicator2
- Power supply
IEEE802.3af, standard PoE
12 VDC
- Indoor station/System parameters
- Operation systemEmbedded Linux operation system
- Memory128 MB
- Flash 32 MB
- Indoor station/Display parameters
- Display screen7-inch colorful TFT screen
- Display resolution1024 × 600
- Operation methodCapacitive touch screen
- Indoor station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711 U
- Audio compression Rate64 Kbps
- Indoor station/Network parameters
- Wired network 10/100 Mbps self-adaptive
- Wireless networkWi-Fi 802.11 b/g/n
- ProtocolTCP/IP, SIP, RTSP
- RS-4851 RJ-45 10/100 Mbps self-adaptive
- Indoor station/Device interfaces
- RS-4851
- Alarm input8-ch alarm inputs
- Relay output2
- TF cardMax to 32 G, SD 2.0 or lower version
- Indoor station/General
- Power consumption≤ 6 W
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
- Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
