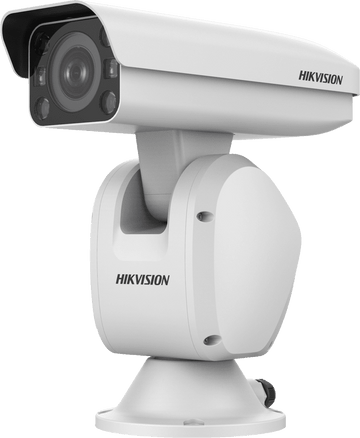

2MP DS-2DY7236IW-A Hikvision 2MP 36X IR positioning system
EX DEMO - BRAND NEW - PACKAGING IS DAMAGED
Hikvision DS-2DY7236IW-A 2MP 36× IR Network Positioning System adopts 1/1.8" progressive scan CMOS chip. With the 36× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.
- 1920×1080 Full HD output
- Wide movement range
- 36X optical zoom, 16X digital zoom
- Up to 150m IR distance
- True Day/Night, smart IR
- 120dB WDR, 3D DNR, Defog
- Triple stream
- Audio/Alarm I/O
Specification
- Lens
- FOV
Horizontal field of view: 59.8° to 2.0° (wide-tele)
Vertical field of view: 33.6° to 1.1° (wide-tele)
Diagonal field of view: 68.6° to 2.3° (wide-tele)
- Zoom SpeedApprox. 4.4 s (optical lens, wide-tele)
- Working Distance10 mm to 1500 mm (wide-tele)
- Aperture RangeF1.5 to F4.5
- Focal Length5.7 mm to 205 mm, 36× Optical
- Image
- Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
- Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Max. Resolution1920 × 1080
- Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Network
- Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
- APIOpen-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party Management Platform
- Simultaneous Live ViewUp to 20 channels
- User/Host
Up to 32 users.
3 levels: Administrator, Operator and User
- ClientiVMS-4200, iVMS-5200
- Web BrowserIE 8+, Firefox 30+, Safari 8.0+ web browser
- Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Interface
- BNC1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC
- Alarm Output1-ch alarm output
- Alarm Input2-ch alarm input
- Audio Input1-ch audio input
- Audio Output1-ch audio output
- Network Interface1 RJ45 10 M/100 M Ethernet Interface
- RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Compression Standard
- H.264+Support
- H.265+Support
- H.264 TypeBaseline Profile/Main Profile/High Profile
- Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
- H.265 TypeMain Profile
- Video Bitrate256 kbps to 16384 kbps
- Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
- Audio Bitrate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- SVCSupport
- Camera Module
- AGCAuto/Manual
- Image Sensor1/1.8" progressive scan CMOS
- Min. Illumination
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
- White BalanceAuto/Manual/ATW (Auto-tracing White Balance)/ Indoor/Outdoor/Fluorescent lamp/Sodium lamp
- Shutter Time1/1 s to 1/30,000 s
- Day & NightIR Cut Filter
- Digital Zoom16×
- Privacy Mask8 programmable privacy masks
- Focus ModeAuto/Semi-automatic/Manual
- WDR120 dB WDR
- Supplement Light
- IR Distance150 m
- Smart IRSupport
- PTZ
- Movement Range (Pan)360° endless
- Pan SpeedConfigurable, from 0.1°/s to 150°/s, Preset Speed: 150°/s
- Movement Range (Tilt)From -10° to 90° (Auto Flip)
- Tilt SpeedConfigurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
- Proportional ZoomSupport
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemorySupport
- Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PTZ Status DisplayON/OFF
- Preset FreezingSupport
- Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
- Smart Features
- Smart DetectionIntrusion Detection, Line Crossing Detection, Audio Exception Detection
- Smart RecordANR (Automatic Network Replenishment), Dual-VCA
- ROIMain stream, sub-stream and third stream respectively support two fixed areas.
- General
- MaterialAluminum alloy ADC12
- DimensionsΦ181 mm × 396 mm × 377.5 mm (Φ 7.13" × 15.59" × 14.86")
- WeightApprox. 7.6 kg (16.76 lb)
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Power24 VAC (Max. 55 W)
- Working Temperature
Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F)
- Working HumidityHumidity: ≤ 90%
