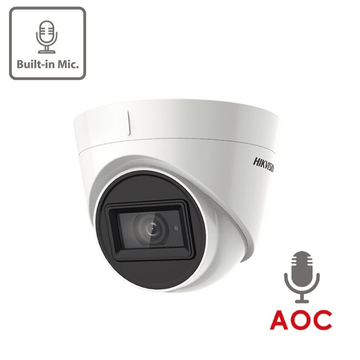

2MP DS-2CE78D0T-IT3FS Hikvision HD-TVI 2.8mm Fixed Lens Turret Camera, 40m Smart IR, Built-In Mic
2MP DS-2CE78D0T-IT3FS Hikvision HD-TVI 2.8mm Fixed Lens Turret Camera, 40m Smart IR, Built-In Mic
Information
DS-2CE78D0T-IT3FS is Hikvision's 2MP HD-TVI analogue turret camera with a 2.8mm fixed lens, up to 40m IR distance and audio over coax with built-in mic.
Features
- 1080P HD Video output
- Switchable TVI/AHD/CVI/CVBS
- 2.8mm fixed lens
- True day/night
- Up to 40m IR distance
- IP67 weatherproof
- Digital wide dynamic range
- Audio over coaxial cable, built in mic
- 12V DC
Specification
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart IR
- Frame RateTVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementYes
- White BalanceAuto/Manual
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialMain Body: Metal Enclosure: Plastic
- DimensionΦ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
- WeightApprox. 300 g (0.66 lb.)
- Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply12 VDC ± 25%
- ConsumptionMax. 3.7 W
- IR RangeUp to 40 m
- Approval
- ProtectionIP67
