2MP DS-2CE72DFT-PIRXOF Turbo X Alarm Camera, Full Time Colour, Bulitin PIR with Siren
2MP DS-2CE72DFT-PIRXOF Turbo X Alarm Camera, Full Time Colour, Bulitin PIR with Siren
Description

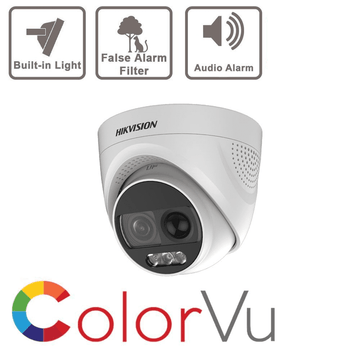

DS-2CE72DFT-PIRXOF is Hikvision's Turbo X 2MP Alarm Camera with builtin PIR sensor and siren. It supports full time colour images, fixed lens and up to 20m smart IR.
DS-2CE72DFT-PIRXO is Hikvisions 2MP Turbo X analogue TVI camera with builtin PIR sensor, flashing LEDs and audible siren. This camera supports 24h full time colour during the day and night with a 3.6mm or a 2.8mm lens and up to 20m white light distance. The camera uses an ultra low light sensor coupled with large aperture F1.0 lens and builtin white light to allow the camera to stay in colour even at night.
The cameras PIR sensor eliminates false alarms from moving objects and animals up to 11m and is used to trigger an audible alarm, flashing red/blue LEDs and notification to your mobile phone.
The camera supports analogue formats HD TVI, AHD, CVI or CVBS.
Features
- 2MP Analogue
- Builtin PIR sesnor up to 11m
- Flashing Leds when PIR triggered
- Builtin speakers with audible siren when PIR triggered
- 3.6mm fixed lens
- Full Time Colour
- Up to 20m white light distance
- OSD menu, 3D DNR, true WDR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- 12V DC
Specification
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightColor
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type3.6 mm, 6 mm fixed lens
- Focal Length & FOV
3.6 mm, horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0°
6 mm, horizontal FOV: 51.0°, vertical FOV: 28.5°, diagonal FOV: 58.7°
- Lens MountM16
- Illuminator
- Supplement Light RangeUp to 20 m
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart Light, Defective Pixel Correction
- Frame Rate
TVI: 1080p@30fps, 1080p@25fps
AHD: 1080p@30fps, 1080p@30fps
CVI: 1080p@30fps, 1080p@25fps
CVBS: PAL/NTSC
- Wide Dynamic Range (WDR)≥130 dB
- Image EnhancementBLC, HLC
- White BalanceATW/MANUAL
- White LightAUTO/OFF
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Material
Enclosure: Plastic
Main Body: Metal
- DimensionΦ 109.82 mm × 93.66 mm (Φ 4.32" × 3.7")
- WeightApprox. 390 g ( 0.86 lb.)
- Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- Consumption
Max. 6.6 W
- Approval
- ProtectionIP67
