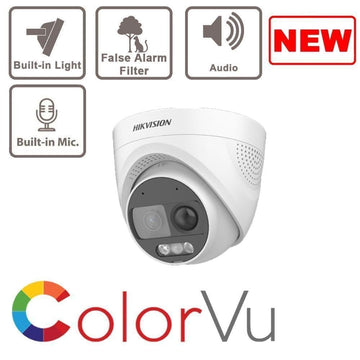

2MP DS-2CE72DF3T-PIRXOS Turbo HD X PIR Siren & Audio
2MP DS-2CE72DF3T-PIRXOS Turbo HD X PIR Siren & Audio
Information
Featured Features:
ColorVu cameras have F stop adjusting to 1.0, which allows you to more capture and use light, its white light allows to illuminate very dark environments to provide a 24/7 color image, that is why ColorVu is among the most selected by customers in environments such as bars, shops, home, office, hospitals, perimeters.
The cameras have a PIR sensor, this one is only activated when there is detection of a person or mass:
- Avoid false alarms for dust, wind or lighting changes.
- Avoid false motion alarms for objects such as curtains, trees, small animals.
Key features:
- Maximum Resolution 2 Megapixel (1920 x 1080)
- Minimum illumination: 0.0005 Lux (F1.0, AGC ON, 0 Lux with IR)
- Fixed lens: 2.8 mm (opening angle 98o)
- 20 Meters of white light (helps illuminate the site to keep the image always in color).
- Supports 4 Technologies, selectable in the wire harness (HD-TVI, HD-CVI, AHD,CVBS Analogico 1200TVL's)
- 130dB WDR
- Functions: BLC / HLC / Global / HLS / 3D DNR / Mirror.
- Built-in PIR sensor to avoid false motion alarms.
- PIR sensor range: angle 110o, range 11 mts.
- Built-in white light that activates when the PIR sensor detects motion.
- Integrated siren to alert (93.5 dB to 1 meter away).
- Red and blue strobe to alert.
Specification
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night24/7 Color Imaging
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal SystemPAL/NTSC
- Slow ShutterMax. 16 times
- Lens
- Lens Type2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
- Lens MountM12
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 20 m
- Smart Supplement LightYes
- Image
- Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
- Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light, Anti-Banding, AGC
- Frame RateTVI: 1080p @ 25 fps/30 fps
- Day/Night ModeColor
- Wide Dynamic Range (WDR)≥130 dB
- Image EnhancementWDR, BLC, HLC, Global, HLS
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR/2D DNR
- White BalanceAuto/Manual
- Supplement Detection(PIR)
- PIR Range11 m
- PIR AngleAngle : 110°
- Interface
- Video Output1 HD analog output
- Alarm
1 line out
Flashing Light Alarm (Red & Blue)
- Built-in MicrophoneYes
- Event
- Motion Detection4 programmable motion areas
- General
- Power
12 VDC ± 25%, max. 9.6 W
*You are recommended to use one power adapter to supply the power for one camera.
- MaterialMain body: Metal, Enclosure: Plastic
- DimensionØ 109.82 mm × 93.66 mm (Ø 4.3" × 3.7")
- WeightApprox. 396 g (0.87 lb.)
- Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
- Approval
- ProtectionIP67
