2MP DS-2CE71D8T-PIRLO Hikvision HD-TVI Analogue 2.8mm Fixed Lens PIR Turret Camera, 20m Smart IR
2MP DS-2CE71D8T-PIRLO Hikvision HD-TVI Analogue 2.8mm Fixed Lens PIR Turret Camera, 20m Smart IR
Information

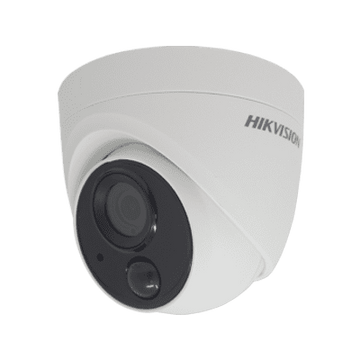

DS-2CE71D8T-PIRLO is Hikvision's 2MP HD-TVI analogue ultra low light PIR turret camera with a 2.8mm fixed lens and up to 20m Smart IR illumination.
DS-2CE71D8T-PIRLO is Hikvisions 2MP, HD-TVI PIR turret camera, 2.8mm fixed lens, 20m smart IR and IP67 weather rating.
KEY FEATURES
- 2MP high performance CMOS
- Adopts HD-TVI technology
- 2.8mm fixed lens
- PIR detection
- Strobe light alarm, alarm out
- True day/night
- Smart IR
- EXIR 2.0 technology
- Up to 20m IR distance
- IP67 weatherproof
- Up the Coax telemetry
- 130dB wide dynamic range
- 12V DC
Specification
- Camera
- Image Sensor2MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.003 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Light AlarmYes
- Lens
- Lens Type2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 103.5°, vertical FOV: 55°, diagonal FOV: 119°
3.6 mm, horizontal FOV: 79.1°, vertical FOV: 43°, diagonal FOV: 92°
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, DNR , Mirror, Smart IR
- Frame RateTVI: 1080p@25fps/30fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥130 dB
- White BalanceAuto/Manual
- White LightAUTO/OFF
- AGCSupport
- Interface
- Video Output1 HD analog output
- General
- Material
Front cover: Metal
Main body: Plastic
- DimensionΦ 109.8 mm × 89.75 mm (Φ 4.32" × 3.53")
- WeightApprox. 327 g (0.72 lb.)
- Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- ConsumptionMax. 3.9 W
- IR RangeUp to 20 m
- Approval
- ProtectionIP67
