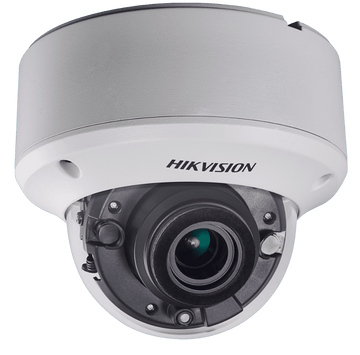

2MP DS-2CE56D8T-VPIT3ZE Hikvision Motorized Varifocal Lens Ultra Low Light PoC EXIR Dome Camera
2MP DS-2CE56D8T-VPIT3ZE Hikvision Motorized Varifocal Lens Ultra Low Light PoC EXIR Dome Camera
2MP DS-2CE56D8T-VPIT3ZE Hikvision Motorized Varifocal Lens Ultra Low Light PoC EXIR Dome Camera
Internal Use Only
Power over Coaxial (PoC) basically means that power for the camera is supplied by the DVR via coaxial video cable (RG59 or similar), this removes the requirement for separate cables and power supplies which would otherwise be needed to power your cameras. For installers this means a much more time and cost efficient
installation.
PoC can be used on cable runs up to 200 metres and is available in 4,8 and 16 channel DVRs (models ending /P), a full complement of TVI PoC cameras are also available (models ending E) which together offer a cost effective and time saving solution to your TVI installations.
PLEASE NOTE: All PoC cameras can also work on non PoC recorders
- All PoC capable TVI cameras can be powered locally via a separate power supply allowing them to be used on a none PoC TVI DVR
- All none PoC TVI cameras can work on a PoC capable TVI DVR as the camera is powered via a separate power supply and PoC will only transmit when requested to by a compatible camera
- PoC transmission must be used through RG59 coaxial or similar cable, it will not pass through CAT5/6 passive/active balun configurations
Features
- 2MP high performance CMOS
- Adopts HD-TVI technology
- Ultra-low light
- TVI test monitor port
- 2.8 - 12mm motorized varifocal lens
- True day/night
- OSD menu
- Smart IR
- EXIR technology
- Up to 40m IR distance
- IP67 weatherproof
- Up the Coax telemetry
- 120 dB wide dynamic range
- Vandal resistant up to IK8
- Built in back box for terminating cables
- PoC.at
- 12V DC
Specification
- Camera
- Image Sensor2.0 megapixel progressive scan CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.005 Lux @ (F1.87, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 340°, Tilt:0° to 75°, Rotate: 0° to 355°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm to 12 mm motorized vari-focal lens
- Focal Length & FOV32.1° to 103°
- Lens MountΦ14
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- Image
- Image SettingsBrightness;Mirror;Sharpness;AGC
- Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥120 dB
- Image EnhancementBLC
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR
- White BalanceAuto/Manual
- Interface
- Video Output1 HD analog output
- Event
- Motion Detection4 programmable motion areas
- General
- Power
12 VDC ±25%/PoC.at
-A: 12 VDC ±25%, 24 VDC ±25%/PoC.at
Max. 7 W
- MaterialMetal
- DimensionØ145.2 mm × 124.1 mm (Φ 5.72" × 4.89")
- WeightApprox. 650 g (1.43 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Approval
- ProtectionIP67, IK10
