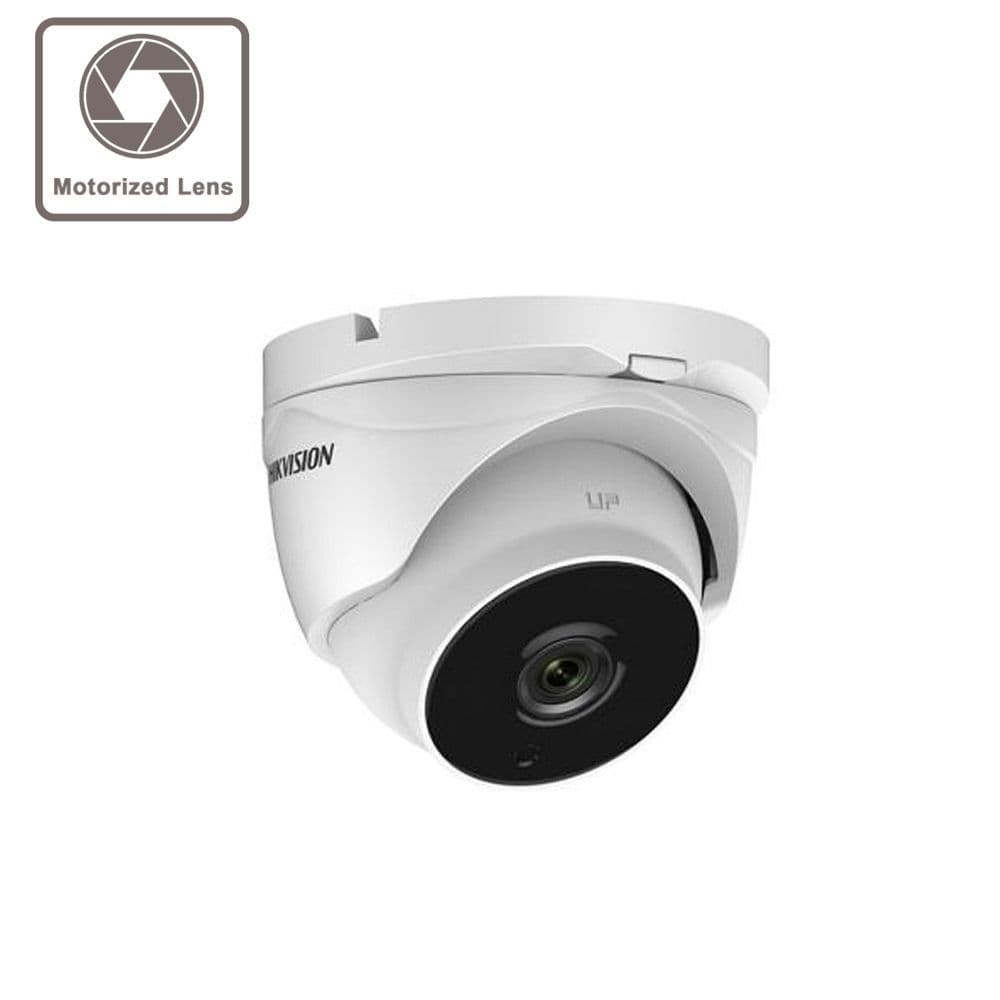

2MP DS-2CE56D8T-IT3ZE Hikvision Ultra Low Light Poc 2.8-12mm Vari-Focal Lens Dome Camera, 40m Ir
2MP DS-2CE56D8T-IT3ZE Hikvision Ultra Low Light Poc 2.8-12mm Vari-Focal Lens Dome Camera, 40m Ir
Information
Description
Power over coax (PoC) means that power for the camera is supplied directly from the DVR via coaxial cable (RG59), this simplifies installation time and removes the requirement for extra power supplies and separate or dual cable thus saving time and costs.
PoC can be used for up to 200m distance and is available in the 4, 8 and 16ch (Hikvision models ending /P), making this a very cost effective and smart solution.
Features
- 2MP CMOS Image Sensor
- PoC (Power over coax)
- 120dB wide dynamic range
- 2.8-12mm motorized varifocal lens
- Analogue HD output up to 2MP resolution
- Up to 40m Smart IR
- 12VDC
- True Day / Night
- Up the Coax (UTC) OSD menu
- IP67 Weatherproof
Specification
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. IlluminationColor: 0.005 Lux @ (F1.87, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Slow ShutterMax. 16 times
- Lens
- Lens Type2.8 mm to 12 mm motorized vari-focal lens
- Focal Length & FOVHorizontal FOV: 32.1° to 103°
- Lens MountΦ14
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 60 m
- Smart Supplement LightYes
- Image
- Image SettingsBrightness;Sharpness;Mirror;AGC
- Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥120 dB
- Image EnhancementBLC
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR
- White BalanceAuto/Manual
- Interface
- Video Output1 HD analog output
- Event
- Motion Detection4 programmable motion areas
- General
- Power12 VDC ±25%/PoC.at, Max. 8.2 W
- MaterialMetal
- Dimension134.3 mm × 123.9 mm × 111.4 mm (5.29" × 4.88" × 4.39")
- WeightApprox. 750 g (1.57 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
- Approval
- ProtectionIP67
