2MP DS-2CE19DF8T-AZE ColorVu PoC Motorized Varifocal Bullet
Information

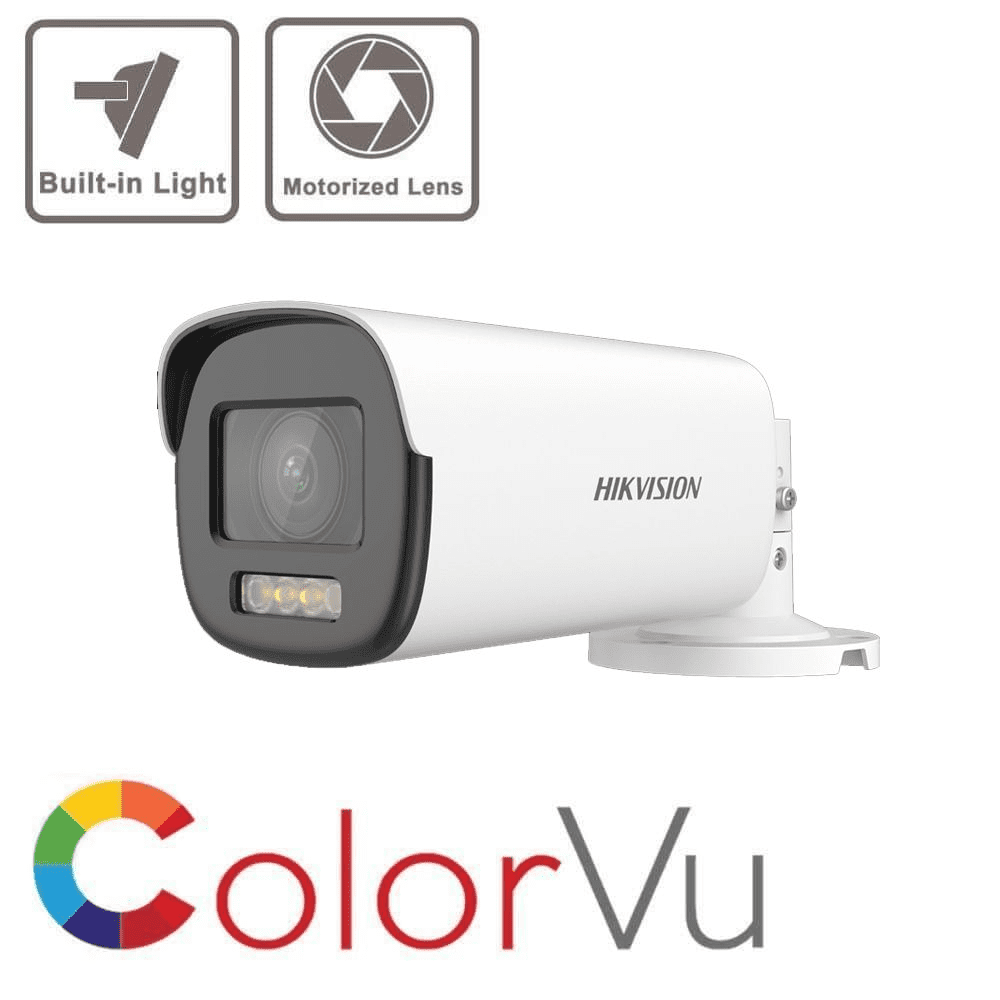

DS-2CE19DF8T-AZE is a 2MP ColorVu Motorized VariFocal Bullet.
Key Features:
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm to 12 mm varifocal lens, auto focus
- Smart Light, up to 40 m white light distance
- Water and dust resistant (IP68).
Specification
- Camera
- Image Sensor1/1.8" 2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.0003 Lux @ (F1.29, AGC ON), 0 Lux with white Light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night24/7 Color Imaging
- Angle AdjustmentPan:0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm to 12 mm motorized, auto focus
- Focal Length & FOVhorizontal FOV: 92.3° to 34.2°, vertical FOV: 48.4° to 19°, diagonal FOV: 112.2° to 39.2°
- Lens MountΦ24
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- Image
- Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
- Image SettingsBrightness, Mirror, Sharpness, Anti-Banding, AGC
- Frame RateTVI: 1080p @ 25 fps/30 fps
- Wide Dynamic Range (WDR)≥130 dB
- Image EnhancementWDR, BLC, HLC, Global, HLS
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR/2D DNR
- White BalanceAuto/Manual
- Interface
- Video Output1 HD analog output
- Event
- Motion Detection4 programmable motion areas
- General
- MaterialMetal
- Dimension89.5 mm × 85.6 mm × 237.1 mm (3.52" × 3.37" × 9.33")
- WeightApprox. 1020 g (2.25 lb.)
- Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power12 VDC/24 VAC±20%/PoC.at, Max: 12.2 W
- Approval
- ProtectionIP68
