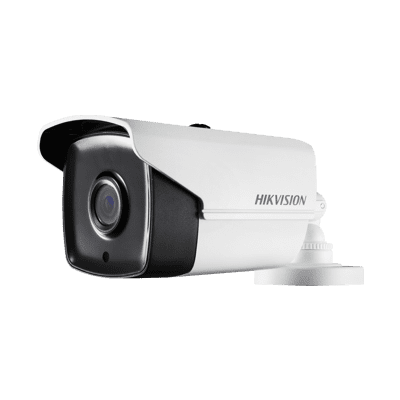

2MP DS-2CE16D8T-IT3E Hikvision fixed lens PoC bullet camera
2MP DS-2CE16D8T-IT3E Hikvision fixed lens PoC bullet camera
DS-2CE16D8T-IT3E
Hikvision ultra low light 2MP analogue TVi camera for outstanding nighttime performance at a very competitive price.
- 2MP high-performance CMOS
- Adopts HD-TVI technology
- 0.005 lux Ultra-low-light
- 3.6mm wide angle, fixed lens
- True day/night
- OSD menu
- Smart IR
- EXIR 2.0 technology
- Up to 40m IR distance
- IP67 weatherproof
- Up the Coax telemetry
- 120dB wide dynamic range
- PoC.at
- 12V DC
POC - MAKING INSTALLATIONS A LOT SIMPLER!
Power over Coaxial (PoC) means that power for the camera is supplied by the DVR via coaxial video cable (RG59 or similar), this removes the requirement for separate cables and power supplies which would otherwise be needed to power your cameras. For installers, this means a much more time and cost efficient
installation.
PoC can be used on cable runs up to 200 metres and is available in 4,8 and 16 channel DVRs (models ending /P), a full complement of TVI PoC cameras are also available (models ending E) which together offer a cost-effective and time-saving solution to your TVI installations.
PLEASE NOTE: All PoC cameras can also work on non-PoC recorders
1. All PoC capable TVI cameras can be powered locally via a separate 12VDC power supply allowing them to be used on a none PoC TVI DVR
2. All none PoC TVI cameras can work on a PoC capable TVI DVR as the camera is powered via a separate power supply and PoC will only transmit when requested to by a compatible camera
3. PoC transmission can be used through RG59 coaxial or cat5/6 cable up to 50 meters..
Specification
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. IlluminationColor: 0.003 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
- Focal Length & FOVHorizontal FOV 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm), 38° (8 mm), 24.4° (12 mm)
- Lens MountM12
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 60 m
- Smart Supplement LightYes
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness;Mirror;Sharpness;AGC
- Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥130 dB
- Image EnhancementBLC;HLC;Global
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR
- White BalanceAuto/Manual
- Interface
- Video Output1 HD analog output
- Event
- Motion Detection4 programmable motion areas
- General
- Power12 VDC ± 25%/PoC.af, Max. 3.6 W
- MaterialMetal
- Dimension86.7 mm × 81.6 mm × 226 mm (3.41" × 3.23" × 8.90")
- WeightApprox. 680 g (1.5 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
- Approval
- ProtectionIP67
