2MP DS-2CE12DFT-F28 ColorVu Bullet Camera Lens, 40m White Light Distance
Description

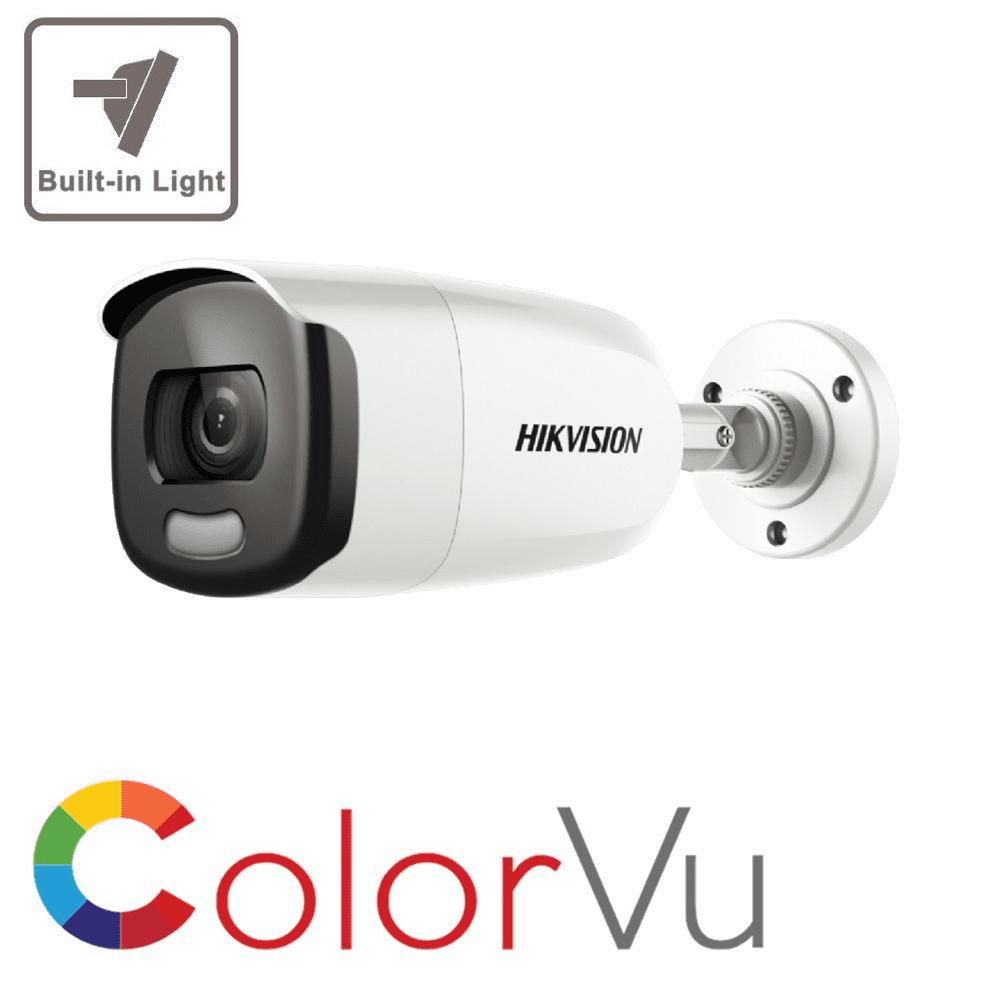

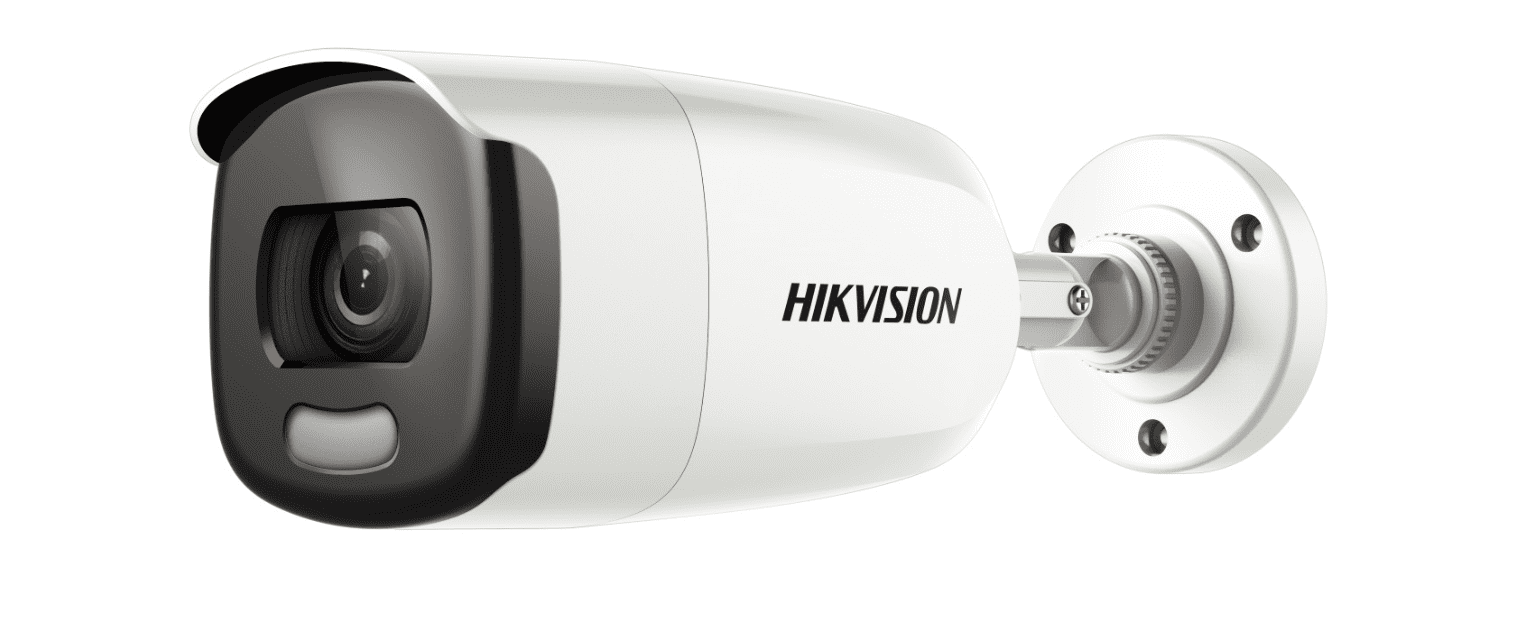

DS-2CE12DFT-F is Hikvisions 2MP ColorVu HD-TVI full time colour bullet camera. This camera boasts full time colour during day and night with a 2.8mm and 3.6mm lens, up to 40m white light distance. The camera uses an ultra low light sensor coupled with large aperture F1.2 lens and builtin white light to allow the camera to stay in colour even at night.

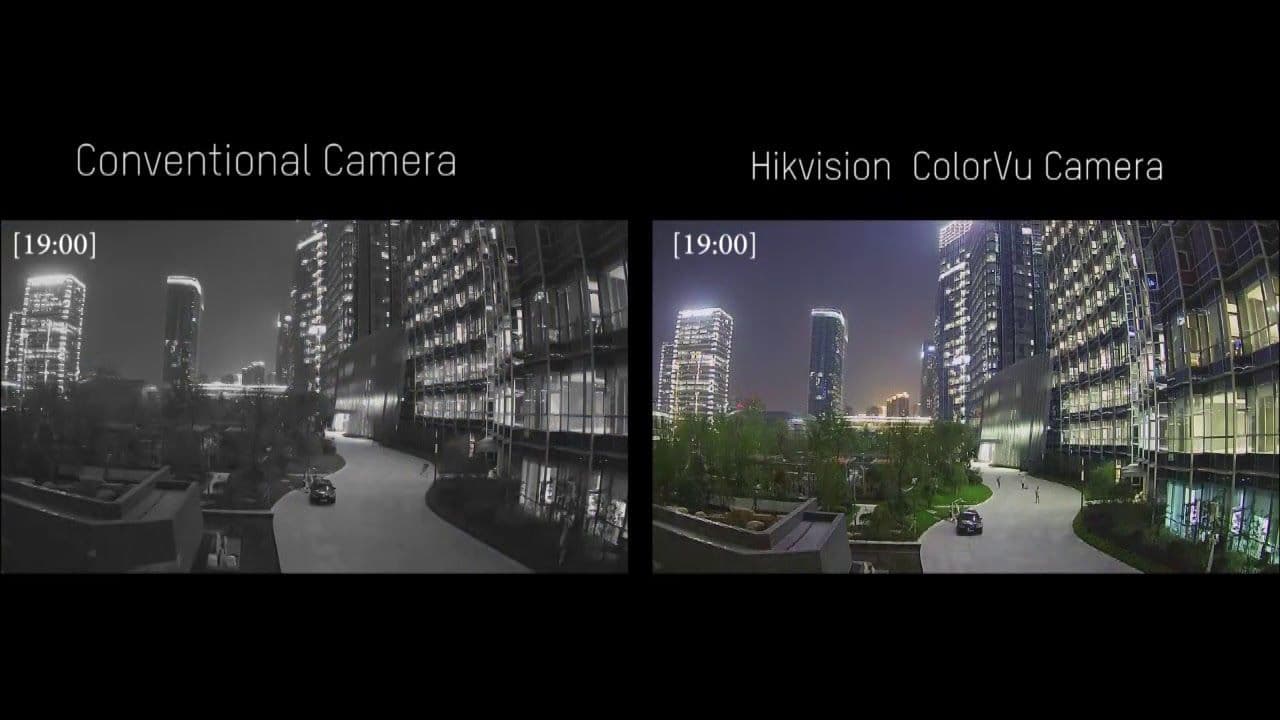

The ColorVu Cameras high-sensitivity is designed for surveillance applications where high resolution color images are required even in ultra-low light environments. Hikvision ColorVu Cameras sensors demonstrate an extraordinary photovoltaic conversion efficiency. They employ an advanced sensor technology a new light-collection structure that vastly improves the utilization of light. Tests show ColorVu cameras continually provide colorful, sharp images right down to the lowest light levels. At the same time, their self-adapting 3D DNR algorithm on ISP guarantees high imaging quality.
As a result, Hikvision ColorVu Cameras provide bright color video images 24/7 in low illumination conditions. They excel at capturing vivid chromatic images in a multitude of application scenarios, such as public places with no lighting, night security at industrial parks, traffic intersections in low light environments, and many more everywhere color information is particularly important.
Key Features
- 2MP high resolution
- 3.6mm fixed lens
- Full Time Colour
- Up to 40m white light distance
- OSD menu, 3D DNR, true WDR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- 12V DC
Specification
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightColor
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
- Lens
- Lens Type2.8 mm fixed lens
- Focal Length & FOV2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°
- Lens MountM16
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart light
- Frame Rate
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Wide Dynamic Range (WDR)130 dB
- Image EnhancementBLC,HLC
- White BalanceATW/MANUAL
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Material
Front Cover: Metal
Main Body: Plastic
- Dimension223.1 mm × 77.1 mm × 82.6 mm (8.78" × 3.04" × 3.25")
- WeightApprox. 436 g (0.96 lb.)
- Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- Consumption
Max. 4.2 W
- IR RangeUp to 40 m
- Approval
- ProtectionIP67
