2MP DS-2CD2725FWD-IZS Hikvision motorized varifocal lens dome camera with IR
2MP DS-2CD2725FWD-IZS Hikvision motorized varifocal lens dome camera with IR
Information

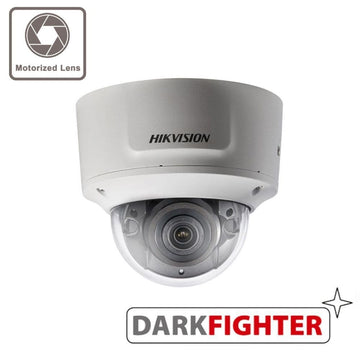

Hikvision DS-2CD2725FWD-IZS 2MP Motorized Varifocal lens dome camera with IR - Internal Dome
The Hikvision DS-2CD2725FWD-IZS outdoor HD PoE Dome IP camera is a high-performance outdoor surveillance camera capable of transmitting H.265+ video at up to 2MP HD resolution. Featuring night vision up to 30m, Wide Dynamic Range and a 2.8-12mm lens, this Hikvision DS-2CD2725FWD-IZS outdoor HD PoE Dome IP camera is equipped to tackle any varifocal outdoor security surveillance solution. Furthermore, this Hikvision DS-2CD2725FWD-IZS outdoor HD PoE Dome IP camera features four (4) behaviour analyses and face detection.
Features
- 1/2.8" Progressive Scan CMOS
- 1920 × 1080 resolution
- 2.8 to 12 mm focal length
- Powered by Darkfighter
- H.265, H.265+, H.264+, H.264
- 120dB Wide Dynamic Range
- BLC/3D DNR/ROI
- IP67, IK10
- 4 behaviour analyses and face detection
Specification
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120dB
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- FocusAuto
- Lens Type2.8 to 12 mm，Motorized
- FOVHorizontal field of view: 105° to 35°,Vertical field of view: 56° to 20°,Diagonal field of view: 126° to 40.5°
- ApertureF1.4
- Lens MountΦ14
- Illuminator
- IR RangeUp to 30 m
- Wavelength850nm
- Video
- Max. Resolution1920 × 1080
- Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
- Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Scalable Video Coding (SVC)Support H.264 and H.265 encoding
- Region of Interest (ROI)Support 1 fixed region for main stream and sub stream
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHZ/48kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
- Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
- Image
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
- DNR3D DNR
- Image EnhancementBLC/3D DNR/HLC
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Interface
- Audio1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- Video Output1Vp-p composite output (75 Ω) (For adjustment only)
- On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Face DetectionYes
- Exception DetectionScene change detection
- General
- Firmware VersionV5.5.80
- Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, PoE (802.3af),Terminal block for DC input
- Power Consumption and Current12 VDC, 0.75A, max. 9.5W,PoE (802.3af, 36V to 57V), 0.3A to 0.1A, max. 11W
- Camera DimensionΦ153.4 × 133.1 mm (Φ6.04" × 5.24")
- Camera WeightCamera: 1287 g (2.84 lb.)
- Approval
- ProtectionIK10，IP66
