2MP DS-2CD2126G1-ISU 2MP AcuSense Fixed Dome Network Camera W/ Built in Mic
2MP DS-2CD2126G1-ISU 2MP AcuSense Fixed Dome Network Camera W/ Built in Mic
Information
2MP DS-2CD2126G1-ISU 2MP AcuSense Fixed Dome Network Camera W/ Built in Mic

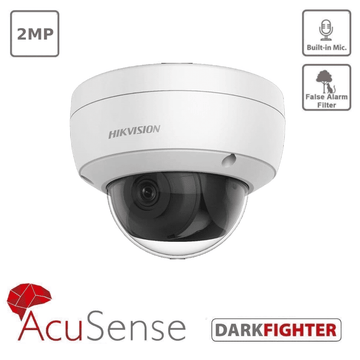

The Hikvision DS-2CD2126G1-I camera is dedicated for professional IP CCTV systems. The ceiling camera has been equipped with high quality 2 MP 1/2.8" CMOS sensor providing good video coverage even in very low-light conditions. Along with IR illuminator with range up to 30 m, the camera can also operate in complete darkness. The built-in 2.8 mm lens has 108° viewing angle.
The IP67-rated housing of the camera protects the electronics against adverse weather conditions. The camera can be powered conventionally with a 12 VDC source or with the use of PoE option (802.3af).
Features
- High quality imaging with 2 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle classification based on deep learning
- -SU: Built-in microphone for real-time audio security, Audio and alarm interface available
- Water and dust resistant (IP67) and vandal resistant (IK10)
Specification
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON)
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120dB
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- FocusFixed
- Lens Type2.8/4/6 mm
- FOV2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 128°,4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 103°,6 mm, horizontal FOV: 52°, vertical FOV: 29°, diagonal FOV: 60°
- ApertureF1.6
- Lens MountM12
- Aperture TypeFixed
- Illuminator
- IR RangeUp to 30 m
- Wavelength850 nm
- Video
- Max. Resolution1920 × 1080
- Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- H.264+No
- H.265+No
- Scalable Video Coding (SVC)H.265 encoding and H.264 encoding support
- Region of Interest (ROI)Support 1 fixed region for main stream and sub stream separately
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8kHz/16kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm TriggerTampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In(-S)
- DNR3D DNR
- Image EnhancementBLC/3D DNR
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Interface
- Audio1 audio input (line in/mic in), 1 audio output, mono sound
- Alarm 1 alarm input, 1 alarm output
- On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification
- General
- Firmware VersionV5.5.61
- General FunctionOne-key reset, anti-filter
- Startup and Operating Conditions-30 °C to +50 °C (-22 °F to +122 °F), humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Power Consumption and Current12 VDC, 0.6 A, max: 7 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max: 8.5 W
- Camera DimensionCamera: Φ 121.4 × 92.2 mm (Φ 4.8″ × 3.6″)
- Camera WeightCamera: 600 g (1.3 lb.),With package: 760 g (1.7 lb.)
- Approval
- ProtectionIK10, IP67 (If the camera is installed outdoor, the bracket DS-1253ZJ-L should be used together with other pendant mounting bracket or wall mounting bracket to reduce IR reflective in the rainy day)
