2MP 15x Zoom DS-2DE4215IW-DE (S5) 100 Metre IRUltra-Low Light IP PTZ Camera
2MP 15x Zoom DS-2DE4215IW-DE (S5) 100 Metre IRUltra-Low Light IP PTZ Camera

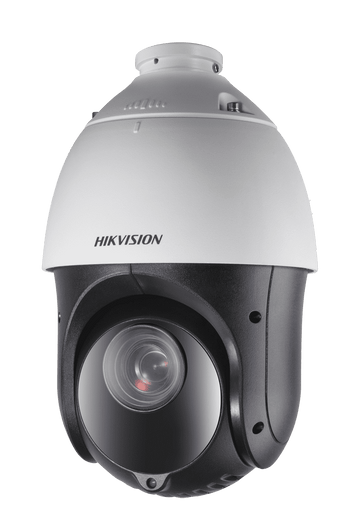

Hikvision 2MP DS-2DE4215IW-DE (S5) 15x Zoom Ultra-Low Light IP PTZ Camera 100m IR
Hikvision DS-2DE4215IW-DE PTZ Dome Cameras are able to capture high quality images in low light environment with its black anti-reflective glass. The black anti-reflective glass increase the luminousness which can reach up to 100m IR distance. Embedded with 1/2.8 progressive scan CMOS chip makes DWDR and 2MP real-time resolution possible. With the 15X optical zoom Day/Night lens, the camera offers more details over expansive areas. Hikvision DS-2DE4215IW-DE PTZ Dome Cameras also features a wide range of functions, including intrusion detection, line crossing detection benefitting users with great improvement on security efficiency, more importantly, with key events / objects being recorded for further forensic needs
EXIR Technology
This model also incorporates Hikvisions EXIR infrared array technology to provide industry-leading illumination in any low- or zero-light environment. Benefiting from an advanced, highly efficient light source that provides up to 30% more illumination efficiency compared to other LEDs and a revolutionary rectangular lens for uniform scene illumination and seamless HD formatting, Hikvisions EXIR cameras deliver the most advanced levels of night-time surveillance available on the market today.
Remote Monitoring & PTZ Control
Connection to the internet is a breeze with the Hik-Connect Setup without any technical or port forwarding knowledge or expertise required. FREE iPhone, iPad, Android, PC & MAC remote viewing software (iVMS 4200 & Hik-Connect). Pan Tilt & Zoom the camera remotely using the Hik-Connect App.
Included
- DS-1618ZJ Wall Mount
- ASW0081-1220002W Power adaptor
Features
- 2MP Hikvision 15x Zoom IP PTZ Camera with 100m IR
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080 resolution
- Min. illumination: Color: 0.05 Lux @(F1.6, AGC ON)
- B/W: 0.01 Lux @(F1.6, AGC ON) 0 Lux with IR
- 15x optical zoom, 16x digital zoom
- Digital WDR, 3D DNR, HLC, BLC, Smart IR
- Up to 100 m IR distance
- 12 VDC & PoE+ (802.3at, class4)
- Support H.265+/H.265 video compression
Specification
- Camera
- Image Sensor1/2.8＂ progressive scan CMOS
- Min. Illumination0 Lux with IR,color: 0.005Lux @ (F1.6，AGC ON); B/W: 0.001Lux @ (F1.6，AGC ON)
- Shutter Speed1/1s-1/30000s
- Slow Shutteryes
- Focus半自动/手动/自动;semi-auto;manual;auto
- Day & NightICR
- Day/Night Switchauto
- BLCyes
- WDR120 dB WDR
- HLCyes
- 3D DNRyes
- Defogyes
- EISyes
- Regional Exposureyes
- Regional Focusyes
- Image Settingsbrightness;contrast;sharpness;saturation
- White Balanceauto;ATW;sodium lamp;indoor;fluorescent lamp;outdoor;MWB;Locked WB;Locked WB
- Digital Zoom16x
- Optical Zoom15×
- Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
- SNR＞52dB
- Lens
- Focal Length5 mm to 75 mm, 15× Optical
- Zoom Speedapprox.2.3s
- FOV
Horizontal field of view: 53.8° to 4° (wide-tele),
Vertical field of view: 31.9° to 2.3° (wide-tele),
Diagonal field of view: 60.4° to 4.6° (wide-tele)
- ApertureF1.6
- Illuminator
- IR Distance100 m
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
- Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Zoomyes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Power-off Memoryyes
- Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Scheduled Taskpreset;pattern scan;patrol scan;auto scan;panorama scan;random scan;tilt scan;frame scan;dome reboot;dome adjust;aux output
- Video
- Max. Resolution1920 × 1080
- Stream Typemain stream;sub-stream;third stream
- Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionH.265;H.264;MJPEG
- Video Bit Rate32kbps to 16384kbps
- H.264 TypeBaseline Profile;Main Profile;High Profile;baseline profile;main profile;high profile
- H.265 TypeMain Profile;main profile
- H.264+yes
- H.265+yes
- SVCyes
- ROIdynamic face tracking;主码流、子码流、第三码流支持8块ROI区域;main stream, sub-stream and third stream respectively support eight fixed areas;fixed region
- Audio
- Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
- Audio Bit rateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps;MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
- Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise Filteringyes
- Smart Features
- Face Captureyes
- Basic Eventaudio exception;motion detection;video tampering alarm;exception
- Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
- Smart RecordANR;Dual-VCA
- Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP
- Network
- Network StorageNAS (NFS, SMB/ CIFS);ANR
- ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
- API ISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP;Hik-Connect
- Simultaneous Live View20
- User/Host32
- Smooth Streamingyes
- Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
- ClientiVMS-4200;Hik-Connect
- Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
- Interface
- Communication Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at);RJ45, self-adaptive 10M/100M Ethernet port
- On-board Storage support microSD/microSDHC/microSDXC cards;up to 256 GB
- Alarm Input1 alarm input
- Alarm Output1 alarm output
- Audio Input;1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output1 audio output, line level, impedance: 600 Ω
- General
- Power12 VDC,PoE (802.3at)
- Power Consumption and CurrentMax. 24 W, including max. 9 W for supplement light
- Operating Conditionstemperature: -30℃ to 65℃ (-22°F to 149°F);humidity lower than 90%RH
- Resetyes
- MaterialADC 12, PC, PC+10% GF
- DimensionsΦ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
- WeightApprox. 2 kg (4.41 lb)
- Approval
- ProtectionIP66,4000V Lightning Protection, Surge Protection and Voltage Transient Protection ,null
