24-Port DS-3E1326P-E Web-managed PoE Switch 10/100 Mbps
24-Port DS-3E1326P-E Web-managed PoE Switch 10/100 Mbps
Regular price
£226.81
Sale price
£226.81
Regular price
Unit price
Information

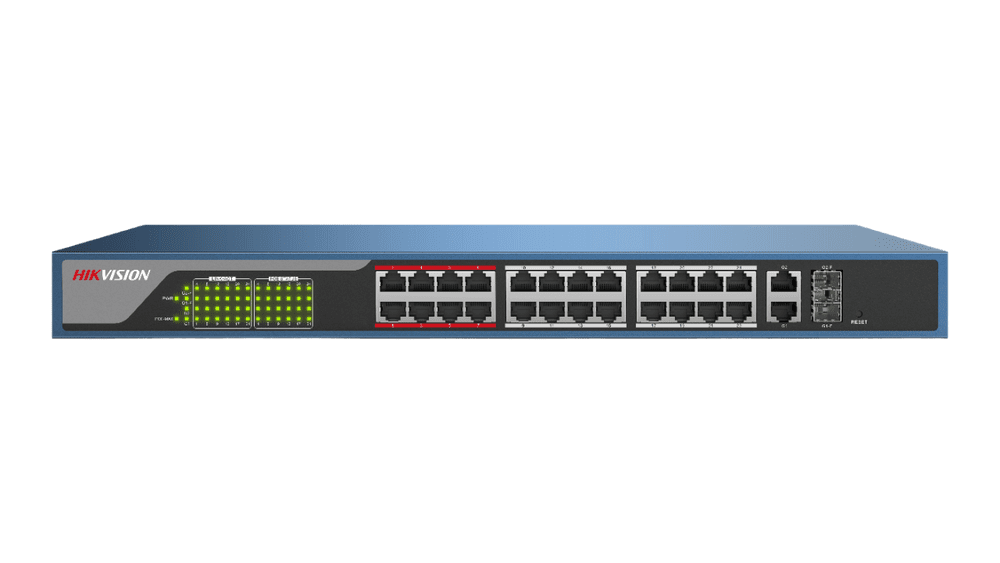

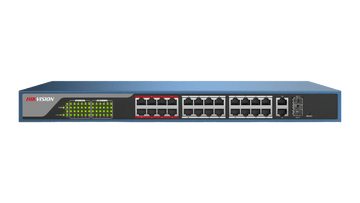

Hikvision DS-3E1326P-E Web-managed PoE Switch
- 802.3af/at PoE standard
- 8-core power supply technology, reducing the power circuit loss
- Data monitor and control for the important ports
- EXTEND mode available to extend the network cable transmission distance to 250 meters
- Buffer optimization to guarantee the video data transmission
- VLAN configurable
- Port trunk
- STP, multicast and port mirroring
- QoS
- SNMP
- WEB management
- Store-and-forward switching
- IEEE802.3, IEEE802.3u and IEEE802.3x network standards available
- MTBF (Mean Time Between Failure) 100,000 hours
- All-metal enclosed construction
- Table-mounted and rack-mouted design for convenient installation
Specification
- General
- Operating Temperature0 ºC to +40 ºC (+32 ºF to +104 ºF)
- Storage Temperature-40 ºC to +70 ºC (-40 ºF to +158 ºF)
- Power Supply100 to 240 VAC, 50/60Hz
- Operating Humidity10% to 90% (Relative Humidity, without condensation)
- Power Consumption≤440W
- Performance
- Store-and-forwardSupport
- MAC Address Table4K
- MAC Address LearningAutomatic learning/Aging
- Backplane Bandwidth8.8 Gbps
- PoE
- Switch Max. Power370W
- Port Max. Power30W
- PoE StandardIEEE 802.3af, IEEE802.3at
- PoE PortPort 1 to 24
- PoE Cable CoreSupports 8-core power supply and simultaneous power supply via the 1236 and 4578 line order.
- Port max. Power30W
- Switch max. Power370W
- Port
- High-priority PortPort 1 to 8
- 1000 Mbps SFP2 (multiplex)
- 10/100/1000 Mbps RJ452
- 10/100 Mbps RJ4524
- Standard
- Network StandardIEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3af, IEEE802.3at, IEEE 802.3x, IEEE802.3z
- Network
- Network MediaEthernet: UTP/STP of CAT3 or above,Fast Ethernet: UTP/STP of CAT5 or above,Gigabit Ethernet: Recommended UTP/STP of CAT5e or CAT6,1000 Base-SX: MMF (Multi-Mode Fiber),1000 Base-LX: MMF (Multi-Mode Fiber) or SMF (Single Mode Fiber)
- Lightning-proof RankingPort: 4 KV,Power supply: 6KV
- Data Transfer RateEthernet: 10 Mbps (half-duplex)/20 Mbps (full-duplex),Fast Ethernet: 100 Mbps (half-duplex)/200 Mbps (full-duplex),Gigabit Ethernet: 2000 Mbps (full-duplex)
- Environment
- Storage Humidity5% to 90% (Relative Humidity, without condensation)
