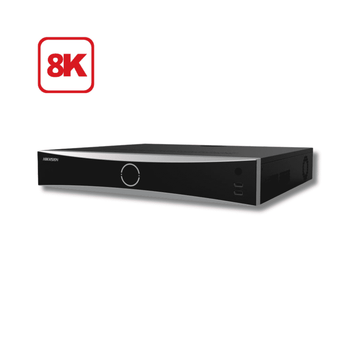

16-Channel Hikvision iDS-7716NXI-M4/16P/X 1.5U 16 PoE 8K DeepinMind NVR
Regular price
£1,009.99
Sale price
£1,009.99
Regular price
Unit price
Information
16-Channel Hikvision iDS-7716NXI-M4/16P/X 1.5U 16 PoE 8K DeepinMind NVR
Key Features
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16- ch@4 MP decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16-ch IP cameras can be connected, plug & play with 16 power-over-Ethernet (PoE) interfaces
The iDS-7716NXI-M4/16P/X is part of Hikvisions Deep in Mind series NVR's with 16 PoE Ports. Designed for medium sized businesses, this unit also offers 4x HDD bays for internal storage. This Deep in Mind NVR is equipped with 16 PoE Ports meaning you wire all the cameras back to the NVR allowing a simple plug and play installation.
Main Features
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16- ch@4 MP decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16-ch IP cameras can be connected, plug & play with 16 power-over-Ethernet (PoE) interfaces
- Intelligent analytics based on deep learning algorithm
- Up to 16-ch perimeter protection
- Up to 16-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture
- Up to 12-ch video structuralization
Specification
- Intelligent Analytics
- AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
- AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch , motion detection2.0, ANPR, people counting, VCA
- Engine2, each engine can run an intelligent algorithm, engine mode is adjustable
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Face Picture Comparison (Captured from Camera)
16-ch (8-ch for each engine);
Comparison speed: 48 pictures per second
- Facial Detection and Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP
- AcuSearch
- By Camera
All channels ,up to 691,200 targets/day
The camera should enable AcuSearch function
- By NVRup to 8-ch,up to 691,200 targets/day
- Perimeter Protection
- By NVR
perimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP
perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
- By Cameraperimeter protection powered by Large Model with AcuSense cameras: All channels
- Video Structuralization
- Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
- Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Face Picture Comparison
16-ch;
Comparison speed: 32 pictrues per second
- ANPR
- By CameraAll channels
- Plate AttributesPlate number, license plate color, license plate type
- Vehicle AttributesVehicle brand, vehicle color, vehicle type
- Video and Audio
- IP Video Input
16-ch
Up to 32 MP resolution
- Incoming Bandwidth256 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
- HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- Video Output ModeHDMI1/VGA1 simultaneous output, HDMI1/HDMI2 independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- VGA Output1920 × 1080/60Hz
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)
- Synchronous Playback16-ch
- Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Camera Access ProtocolONVIF(Version 2.5), RTSP
- PoE
- Interface16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
- Power≤ 200 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA4 SATA interfaces; 3.5-inch HDD
- eSATA1 eSATA interface
- CapacityUp to 16 TB capacity for each HDD
- Serial Interface1 RS-232, 2 RS-485 (half-duplex)
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/4
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 50 W (without HDD and PoE off)
- Working Temperature-10 to 55°C (14 to 131° F)
- Working Humidity10 to 90%
- Dimension (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
- Weight≤ 5 kg (without HDD, 11 lb.)
- Certification
- Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
