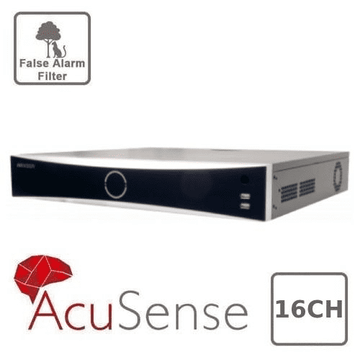

12MP iDS-7716NXI-I4/16P/X(C) Hikvision 16 Channel NVR + DeepInMind False Alarm Filtering
12MP iDS-7716NXI-I4/16P/X(C) Hikvision 16 Channel NVR + DeepInMind False Alarm Filtering
12MP iDS-7716NXI-I4/16P/X(C) Hikvision 16 Channel NVR + DeepInMind False Alarm Filtering
16 channel human body detection for intelligent event filtering, NVR will only trigger a smart event when a human body is detected and all other detections will be filtered out avoiding unnecessary nuisance tripping - especially useful on alarm or police monitored installations.
Builds 16 channel human detection indexes allowing you to search archives based on person characteristics such as age, gender, colour of clothing or upload an image of a person of significance and allow the NVR to search its capture archives based on a similarity level which can be set by the user with all search results shown on screen in the form of viewable thumb nails.
Features
- Up to 12 Megapixels resolution recording
- 16 Channel POE
- 320Mbps record rate
- HDMI and VGA output at up to 3840 x 2160 resolution
- Up to 4 SATA interfaces, Up to 32TB internal storage
- Picture search by features
- 16ch recognition of human target
- False alarm filtering for up to 16ch behaviour
- 8 alarm inputs, 4 alarm outputs
Specification
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture Library
Up to 16 face picture libraries, with up to 100,000 face pictures in total
(each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Facial Detection and Analytics Performance8-ch 8 MP human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Face Picture Comparison
16-ch face pictures comparison alarm,
Alarm linkage actions: recording, audio warning, notify surveillance center, send email
- Perimeter Protection
- Human/Vehicle AnalysisUp to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- Video Structuralization
- Structured AnalysisUp to 8-ch 2 MP (HD network camera, up to 8 MP, H.264/H.265) live video structuralization analysis
- Face Picture LibraryUp to 16 face picture libraries, with up to 100,000 face pictures in total
- Face Picture Comparison8-ch face picture comparison alarm
- Video and Audio
- IP Video Input16-ch；Up to 12 MP resolution
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth256 Mbps
- Incoming Bandwidth (RAID Mode)200 Mbps
- Outgoing Bandwidth (RAID mode)200 Mbps
- HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA Simultaneous Output
- Video Output ModeHDMI/VGA independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability16-ch@1080p (30 fps)
- Synchronous playback16-ch
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Network
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection128
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
- Power≤ 200 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA4 SATA interfaces
- eSATA1 eSATA interface
- CapacityUp to 10 TB capacity for each HDD
- Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/8
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 30 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Chassis19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
- Weight≤ 5 kg (11 lb)
- Certification
- Obtained CertificationCE, FCC, UL, CB, WEEE, BIS, IC, RCM, KC, LOA
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
