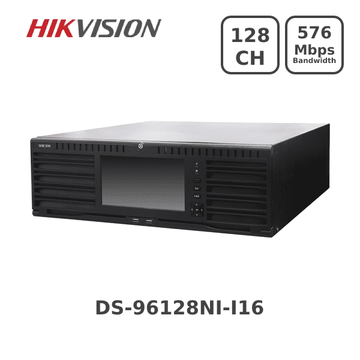

12MP Hikvision DS-96128NI-I16/ 128 Channel Network Video Recorder - 576Mbps Bandwidth
The Hikvision DS-96128NI-I16 is a 128 channel NVR with space for 16 hard drives. It can support cameras with up to 12MP resolution. This NVR has 2 x HDMI outputs, one of which can be used as the auxiliary output. It also has an audio I/O and USB 3.0 outputs.
This NVR is extremely versatile as it supports RAID and HDD quota so that it can be configured to be suitable for a range of applications.
The DS-96128NI-I16 is designed to provide a centralized solution for up to 128 IP cameras and can be used with third party cameras. It has the ability to be used with smart cameras and supports VCA such as face detection, behavior analysis and more.
This NVR will accept any capacity hard drive (HDD) currently available. Any maximum capacity stated on the manufacturers documents is simply based upon the maximum HDD size that was available at the time of release/publication.
Key Features
- - 128 channels
- - 576 Mbps Bandwidth
- - 16 SATA interfaces
- - Supports up to 12MP cameras
- - H.265+/H.265/H.264+/H.264
- - Connectable to third-party IP cameras
- - HDMI 1 and VGA work as the main output
- - HDMI 2 works as the auxiliary output
- - Outputs up to 4K resolution
- - Supports up to 20 channels at 1080p resolution
- - Supports HDD hot swap with RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60 and JBOD storage
- - 4 self-adaptive 10M/100M/1000M network interfaces
- - Supports ANR
- - Supports HDD quota and group modes
Specification
- Video and Audio
- IP Video Input128-ch
- Incoming Bandwidth (RAID Mode)576 Mbps
- Outgoing Bandwidth512 Mbps
- Incoming Bandwidth576 Mbps
- Outgoing Bandwidth (RAID mode)512 Mbps
- TLS outgoing bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)
- HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
- VGA Output1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
- LCD OutputOptional: One 7 inch LCD
- Audio Output1-ch. RCA (2.0 Vp-p, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Decoding FormatH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
- Synchronous playbackUp to 16 channels
- Decoding Capability
1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
- Network
- Network ProtocolIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
- Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
- Network Interface4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- PoE
- Interface16 SATA interfaces supporting hot-plug
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10
- Auxiliary Interface
- SATA 2 × mini SAS interface (optional)
- eSATA1 × eSATA interface
- CapacityUp to 10 TB for each HDD
- Serial InterfaceRS-232; RS-485; Keyboard
- USB InterfaceFront Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
- Alarm In/Out16/8
- Extension BoardOne extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
- General
- Power Supply100 to 240 VAC, 50 to 60Hz, 5 A
- Consumption≤ 140W
- Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)447 × 490 × 133 mm (17.6 × 19.3 × 5.2 inch)
- Weight≤ 16 kg (35.3 lb)
