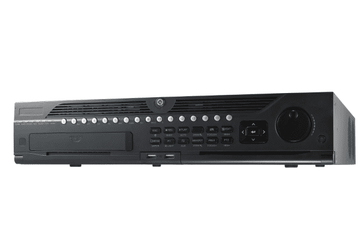

12MP DS-9664NI-I8 Hikvision 64 Channel NVR
Hikvision 64 Channel NVR (DS-9664NI-18)
Description
The Hikvision DS-9664NI-I8 is a 64 channel NVR with 4K video output, 12MP recording resolution and instant playback for assigned channels.
This NVR is professional and reliable with Dual-OS design to ensure high reliability of system running and ANR technology to enhance the storage reliability when the network is disconnected.
The DS-9664NI-I8 has up to 8 SATA interfaces and 1 eSATA interface connectable for recording and backup.
Max. HDD support - 80TB (8 x 10TB)
Max: supported IP cameras - 64
Max: Megabits per second (Mbps) - 320
Key Features
Professional and Reliable
- Dual-OS design to ensure high reliability of system running
- ANR technology to enhance the storage reliability when the network is disconnected
- HDD hot swap with RAID0, RAID1, RAID5 and RAID10 storage scheme configurable
HD Input
- H.265/H.264+/H.264/MPEG4 video formats
- Connectable to the third-party network cameras
- Up to 64 IP cameras can be connected
- Recording at up to 12 MP resolution
- Supports live view, storage, and playback of the connected camera at up-to 12 MP resolution
HD Output
- HDMI1/VGA1 and HDMI2/VGA2 outputs provided
- HDMI1 Video output at up to 4K (3840 × 2160) resolution
HD Storage
- Up to 8 SATA interfaces and 1 eSATA interface connectable for recording and backup
- Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
HD Transmission
- 2 self-adaptive 10M/100M/1000M network interfaces, and two working modes are configurable: multi-address and network fault tolerance
Various Applications
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectible to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Supports HDD quota and group modes; different capacity can be assigned to different channels
Specification
- Video and Audio
- IP Video Input
64-ch
Up to 12 MP resolution
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth256 Mbps
- Incoming Bandwidth (RAID Mode)200 Mbps
- Outgoing Bandwidth (RAID mode)200 Mbps
- HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA 1 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Synchronous playback16-ch
- Decoding Capability1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
- Dual-Stream RecordingSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)
- Auxiliary Interface
- Serial Interface1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
- SATA8 SATA interfaces supporting hot-plug
- eSATA1 eSATA interface
- CapacityUp to 10TB capacity for each disk
- Alarm In/Out16/4
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 30 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Chassis3U chassis
- Dimension (W × D × H)445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")
- Weight≤ 10 kg (22 lb)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
