12MP DS-96064NI-I16 64 Hikvision NVR
Description

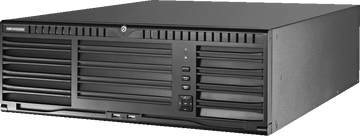

HIKVISION DS-96064NI-I16 64 Channel 12MP 4K+ NVR (No PoE)
Embedded 4K NVR
The Hikvision DS-96064NI-I16 is a very High End Professional NVR with up to 12MP resolution recording capability. 4K HDMI output enables connection to 4k TV/Monitors. It offers Dual Gigabit LAN ports enabling you to seperate your home and security network, providing up to 512Mbps incoming bandwidth. RAID 0,1,5,10. with HDD hot swap supported. Up to 16 SATA interfaces for installing up to 16x 10TB hard drives for a max of 160TB capacity. The NVR also provides dual HDMI & dual VGA outputs. Rackmount brackets & screws are included Now with the more efficient H.265 encoding with 40-50% lower lower bit rates. (H.265) This NVR does NOT have PoE ports so cameras connected to it will need to be powered via a PoE switch or a local 12v Power supply.
Features
- Third-party network cameras supported
- Up to 12 Megapixels resolution recording
- Video outputs at up to 4K (4096*2160) resolution
- Supports decoding up to 20 channels at 1080P resolution
- Up to 128/256 IP cameras can be connected with
- 512M/768M incoming bandwidth
- Up to 24 SATA interfaces
- Supports H.264+,H.264,MPEG4,H.265,MJPEG video format
- Support redundant power supply to improve the system stability
- Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
- Support various VCA detection alarm and VCA search
Specification
- Video and Audio
- IP Video Input64-ch
- Incoming Bandwidth (RAID Mode)512 Mbps
- Outgoing Bandwidth512 Mbps
- Incoming Bandwidth512 Mbps
- Outgoing Bandwidth (RAID mode)400 Mbps
- TLS outgoing bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)
- HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
- VGA Output1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
- LCD OutputOptional: One 7 inch LCD
- Audio Output1-ch. RCA (2.0 Vp-p, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Decoding FormatH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
- Synchronous playbackUp to 16 channels
- Decoding Capability
1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
- Network
- Network ProtocolIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
- Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
- Network Interface4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- PoE
- Interface16 SATA interfaces supporting hot-plug
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10
- Auxiliary Interface
- SATA 2 × mini SAS interface (optional)
- eSATA1 × eSATA interface
- CapacityUp to 10 TB for each HDD
- Serial InterfaceRS-232; RS-485; Keyboard
- USB InterfaceFront Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
- Alarm In/Out16/8
- Extension BoardOne extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
- General
- Power Supply100 to 240 VAC, 50 to 60Hz, 5 A
- Consumption≤ 140W
- Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)447 × 490 × 133 mm (17.6 × 19.3 × 5.2 inch)
- Weight≤ 16 kg (35.3 lb)
