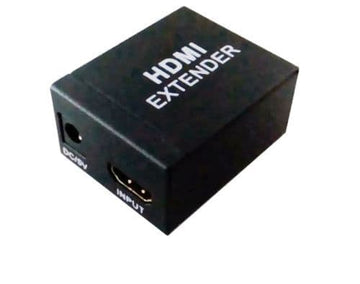

1080P HDMI Extender 40 Metres over Cat5
1080P HDMI Extender 40 Metres over Cat5
Extends the length of HDMI cable up to 40m by regenerating the HDMI signal before it sends the outputs to the
HDMI monitor or projector.
This hdmi extender adopts the iron shell for better EMI elimination and it will clean out the digital noise(sparkles) in
your picture.
This repeater compatible well with HD-DVD,SKY-STB,PS3,Xbox36etc.it offers solutions for residential consumers:HDTV retail and show site,HDTV,STUB,DVD and
projector factories,noise,space and security concerns,data center control,information distribution,conference room
presentation,school and corporate training environments.
Features
This kind of the hdmi extender has many features that enable it to perform in a superior manner.Among those
features you will find:
* Supports highest video resolution 1080p.
* Supports 225MHz/3.4Gbps data rate
* Supports 48bit per channel deep color
* HDCP pass-through.
* Iron Shell for better EMI elimination.
* Supports uncompressed audio such as LPCM.
* Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and
Dolby True HD).
* Unique designed structure for better connection.
* Support 3D all format
Specifications
|
Signal Inputs/output |
|
|
Input Video Signal |
HDMI Signal |
|
HDMI Input/Output Connector |
Type A 19 pin |
|
Output Video |
HDMI 1.3b |
|
Operating frequency |
|
|
Vertical Frequency Range |
50/60Hz |
|
Video Amplifier Bandwidth |
3.4Gbps/225MHz |
|
Resolutions(HDTV) |
|
|
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
|
Progressive Resolutions(50&60Hz) |
480p,576p,720p,1080p |
|
warranty |
|
|
Limited Warranty |
1 Year |
|
Item Size |
51X41X25mm |
|
Item NW. |
68g |
|
environmental |
|
|
Operating Temperature |
0 °C to +70°C |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10°C to +80°C |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|
Power requirement |
|
|
External Power Supply |
5V DC |
|
Power Consumption |
2W |
|
Regulatory approvals |
|
|
Converter Unit |
FCC,CE,RoHs |
|
Power Supply |
can be working without power adapter |
Note:specifications are subject to change without notice.
Package contents:
Before attempting to use this unit,please check the packing and make sure the following items are contained in the shipping carton:
1* HDMI extender
1* Users manual(en)
Panel descriptions
Connection and operation
1.connect the output of the source device into the input of hdmi extender and connect the output to the hdmi display unit.
The hdmi extender is put close to the hdmi display unit(input cables are optional)
*please refer to connection diagram section.
2.insert the DC side of 5V power supply if the 5V of the source is not enough.
Attention:insert/extract cable .
